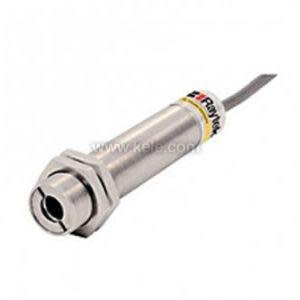

Small cylindrical metal sensor with threaded body and attached grey cable with plug

RAYCMLTY | Raytec | Temperature Sensors & Transmitters

Infrared Temperature Sensor with RS232, 0-5VDC Output, 1m Cable, Standard 0.75-16 UNF Thread

Brand:Raytec

MPN:RAYCMLTY

SKU:RAYCMLTY

List Price:

$1,156.00

Today's Price:

$601.12

product datasheet

installation instructions

catalog page

product specifications

Power Supply

12-24 VDC

Communication Protocol

RS232

Type

Accessory

Accuracy

1.5%

Housing Material

Metallic

Probe Length

None

Temperature Range

-4 to 932 °F (-20 to 500 °C)

Lead Length

3 ft

Output Signal

Analog

product series specifications

Accuracy: ±1.5% of reading

Sensor Range: -4° to 932°F (-20° to 500°C)

Response Time: 150 mSEC

Emissivity: 0.1

Operating Temperature: 14° to 160°F (-10° to 70°C)

Operating Humidity: 10% to 95% RH non-condensing

Enclosure Rating: NEMA 4, 3.3 ft (1m) cable

Dimensions: 0.75" diameter (16 UNF) (includes two nuts) x 3.7" long (1.9 x 9.4 cm)

Weight: 0.32 lb (0.15 Kg)

Approvals: CE

Warranty: 3 years

product series features

Reads temperatures down to -4 degrees F (-20 degrees C)
0-5 VDC signal
Easy to install
Use in ice rinks and lobbies

more information & related documents

Series Description

The Raytek Model RAYCMLTV is a non-contact infrared radiant-temperature transmitter. Infrared energy is one of the main components of the perceived temperature in a space. The non-contact nature of the RAYCMLTV allows for mounting in difficult applications such as ice rinks, conference halls, bearings and conveyor belts.

Kele Description

INFARED TEMP TRANSMITTER 0-5V

Manufacturer

Raytec
