TIWA1K0 | Veris Industries | Temperature Sensors & Transmitters

IMM WTHRPRF 2.5 IN WELL 10K T3 W/11K SHUNT THMS

Manufacturer:Veris Industries

MPN:TIWA1K0

SKU:TIWA1K0

list price:

149.72

74.86

(login for better pricing)

availability:Usually Ships in Less Than 12 Business Days

add to cart

product family specifications

Accuracy

Thermistor

2.2k, 3k,20k,100k

±0.11℉ (0.2℃)

10k Type 2 & 3

± 0.06℉ (0.1℃)

RTD

100, 100 385 curve

±0.17℉ (0.3℃)

Sensor Type

Thermistor

2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD

100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range

Thermistor/RTD

-13° to 221℉ (-25° to 105℃)

Temperature Coefficient

Thermistor

Negative temperature coefficient

RTD

Positive temperature coefficient

Mounting

Directly to pipe with well

Wiring Terminations

22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Probe length

2 1/2″ (6.4 cm) 4″ (10 cm), 6″ (15 cm), 8″ (20 cm) and 12″ (30 cm)

Enclosure

1/2″ thread NPT head, handibox, weatherproof enclosure and serivce body

Approvals

Weight

Style specific

Warranty

5 year

more information & related documents

Family Description

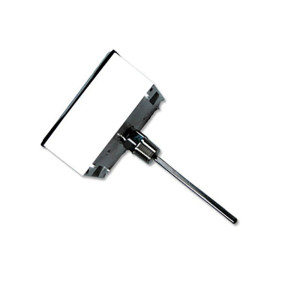

The Veris TIH, TID, TIW and TIG Immersion Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The TIH Series is a 1/2″ thread NPT connection with lenghts of 2 1/2″ (6.4 cm), 4″ (10 cm), 6″ (15 cm), 8″ (20 cm) and 12″ (30 cm). The TID Series has metal handi box, while the TIW Series has a weatherproof enclosure. The TIG Series has service body.

Kele Description

IMM WTHRPRF 2.5 IN WELL 10K T3 W/11K SHUNT THMS

Manufacturer

Veris Industries

Related Documents

TIH, TID, TIW & TIG datasheet
PDF - TIH, TID, TIW & TIG installation manual.pdf

TIH, TID, TIW & TIG installation manual
