AS2PW055P807KK1 | Minco Products | Temperature Sensors & Transmitters
TEMPSENSOR,IMMERS,1KRTD375,5.50"PROBE,METALLICENCL
Brand:Minco Products
MPN:AS2PW055P807KK1
SKU:AS2PW055P807KK1
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct series specifications
- Accuracy:
- ±0.9‚Ñâ (0.5‚ÑÉ) or ±0.2% Ro trim
- Stability:
- Better than 0.05°C per year
- Sensor Type:
- 1000Œ© platinum two-wire 0.00375 Œ©/Œ©/°C, 100Œ© platinum three-wire 0.00385 Œ©/Œ©/°C
- Temperature Range:
- Immersion ″P″, ″Q″:
- -50° to 500‚Ñâ (-46° to 260‚ÑÉ)
- Probe Length Range:
- 2" to 48" long
- Probe Material:
- Immersion:
- 0.25" diameter stainless steel
- Enclosure:
- Immersion ″P″:
- Weather-resitant Box
- Wiring Terminations:
- 4″ 22 AWG silver-plated stranded copper, Teflon insulated
- Warranty:
- 3 years
product series features
- Low cost, easy installation
- Rugged design
- Platinum RTDs
- Interchangeable sensors
- NIST certification available
more information & related documents
Series Description

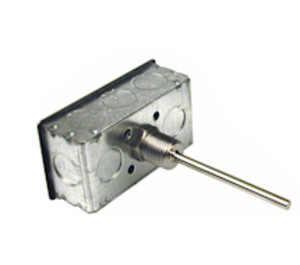

The Minco Immersion Temperature RTD Sensors use a thin film platinum element for fast, accurate point measurement for energy and environmental control applications. The Model AS _ _ _ Q immersion probes are designed with a 1/2 in tapered thread for easy installation in thermowells. The Model AS _ _ _ P uses a weather-resistant box.
Kele Description
TEMPSENSOR,IMMERS,1KRTD375,5.50"PROBE,META
Manufacturer
Minco Products
