* product series image displayed

TE-703-B-5-A-3 | MAMAC Systems | Temperature Sensors & Transmitters

TEMP SENSOR, IMMERS, 1K BALCO RTD, 4.00" PROBE, ENCL

Brand:MAMAC Systems

MPN:TE-703-B-5-A-3

SKU:TE-703-B-5-A-3

List Price:

$39.73

Today's Price:

$20.66

catalog page

Lead time of 3 days. Chat with Kele experts now

product specifications

Type

RTD

Housing Material

Poly

Probe Length

4 in

Sensor Element

1K Balco RTD

Housing

Polycarbonate

Output Signal

Resistance

product series specifications

Accuracy: ±0.36°F (0.2°C)

Thermistor: ±0.36°F (0.2°C)

RTD:

1KΩ Nickel, 1KΩ Balco: ±0.5°F (0.28°C)

100Ω, 1KΩ Pt 385: ±0.27°F (0.15°C)

Sensor Type:

Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III, 20 kΩ, 100 kΩ

RTD: 1kΩ Nickel; 100Ω Pt 385 Curve; 1kΩ Pt 385 Curve

Temperature Range: -40° to 210°F (-40° to 100°C)

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Enclosure Rating: Depends on model

Mounting: Directly to pipe

Wiring Terminations: 6' (1.8m) pigtails

Weight: depends on model

Approvals: CE, RoHS

Warranty: 5 years

product series features

Wide selection of thermistor and RTD curves
Waterproof stainless steel probe

more information & related documents

Series Description

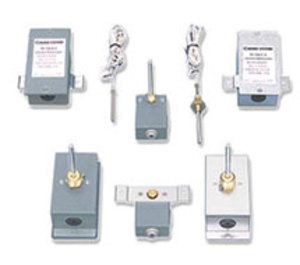

The Mamac Systems Model TE703/704 Immersion and Surface temperature Sensors provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The Mamac TE703A is a thermowell mount immersion temperature sensor. The Mamac TE703B is a polycard enclosure immersion temperature sensor. The TE703C is a galvanized steel enclosure immersion temperature sensor. The Mamac TE703D is a painted steel enclosure immersion temperature sensor. The Mamac TE704A is a strap on probe temperature sensor. The Mamac TE704B is a polycard enclosure surface temperature sensor. The Mamac TE704C is a galvanized steel enclosure surface temperature sensor. The Mamac TE704D is a painted steel enclosure surface temperature sensor.

Kele Description

TEMP SENSOR, IMMERS, 1K BALCO RTD, 4.00" PROBE, ENCL

Manufacturer

MAMAC Systems
