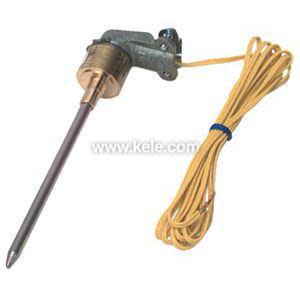

Immersion Temperature Sensor, 10K Type III Thermistor, Sensor without well

Brand:Kele

MPN:ST-W3E

SKU:ST-W3E

List Price:

$56.84

Today's Price:

$29.56



Availability: 43 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

WEL-B, WEL-S, TCC-111, TCC-12, UR

Application

Hydronic HVAC

Housing Material

None

Housing Rating

None

Output

Resistance

Probe Length

4.87 in

Sensor Element

10K Type 3 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • †±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
    Type 63:
  • †±0.72‚Ñâ (0.40‚ÑÉ)
    Type 71 :
  • †+/-0.0774°F (0.043°C)

    Type 81,85:
  • †±0.27‚Ñâ (0.15‚ÑÉ)
    Type 91 :
  • †±0.54‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
    Type 63:
  • †1000‚Ѷ Nickel
    Type 71,81:
  • †100‚Ѷ Pt 385 Curve
    Type 85:
  • †1000‚Ѷ Pt 385 Curve
    Type 91 :
  • †1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • †Negative temperature coefficient
    RTD:
  • †Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • †0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • †Max 0.04% after 1k hours @ 500 ‚ÑÉ
    Heat Dissipation:
  • †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Enclosure Rating:
  • †Depends on model
    Mounting:
  • †Directly to pipe in supplied brass well, no adapters needed for standard boxes, customer-supplied† †1/2" ThredoletÆ required in pipe
    Wiring Terminations:
  • †8' (2.44 m) of 24 AWG pigtails with prestripped ends, type 71 & 81 have 18" leads
    Weight:
  • †0.65 lb (0.3 Kg) w/o well
    Approvals:
  • †CE
    Warranty:
  • †Lifetime

product series features

  • Lifetime warranty
  • ±0.36 degrees F (±0.2 degrees C) thermistor accuracy
  • ±1 degrees F (0.53 degrees C) RTD accuracy
  • Wide selection of thermistor and RTD curves
  • Brass thermowell for quick temperature response
  • Adaptable with many options
  • Easy to mount and remove from thermowell
  • Waterproof stainless steel probe

more information & related documents

Series Description

The Precon Model ST-W Immersion Sensor from PreCon provides precise remote temperature sensing for Building Automation Systems, BAS, and mechanical equipment room instrumentation. The active sensing element is a highly stable precision thermistor material or platinum RTD. The sensing element is sealed with a temperature conductive compound in a 4-7/8 in (12.4 cm) stainless steel tube and brass fitting. A brass thermowell is the standard well provided with each sensor. A Greenfield connector is factory installed for flexible connection. The probe assembly on these immersion sensors are removable for replacement without the draining system.

Kele Description

TEMP SENSOR, IMMERS, 10K TYPE III, 4.875" PROBE, NO ENCL

Manufacturer

Kele
