ST-TS63-XC25 | Kele | Temperature Sensors & Transmitters

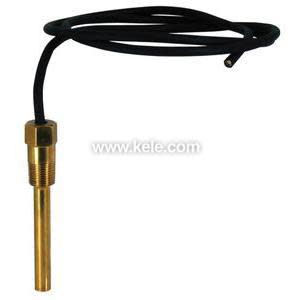

Submersible Temperature Sensor, 1K NI RTD, 25' (7.6m) Lead Length Cable
Brand:Kele
MPN:ST-TS63-XC25
SKU:ST-TS63-XC25
List Price:
$268.00
Today's Price:
$139.36
product specifications
Accessory
T81U-XR, T91U-XR, TCC-111, TCC-12, UR, WEK-B, WEL-S
Feature
Brass Thermowell
Application
Hydronic HVAC
Housing Material
None
Housing Rating
None
Output
Resistance
Probe Length
3.25 in
Sensor Element
1K Ohm Nickle-Iron Balco
Type
RTD
product series specifications
- Accuracy:
- Thermistor:
- †±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- Type 63:
- †±0.72‚Ñâ (0.40‚ÑÉ)
- Type 71:
†+/-0.0774°F (0.043°C)
- Type 81, 85:
- †±0.27‚Ñâ (0.15‚ÑÉ)
- Type 91:
- †±0.54‚Ñâ (0.30‚ÑÉ)
- Sensor Type:
- Thermistor:
- †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
- RTD:
- Type 63:
- †1000‚Ѷ Nickel
- Type 71, 81:
- †100‚Ѷ Pt 385 Curve
- Type 85:
- †1000‚Ѷ Pt 385 Curve
- Type 91:
- †1000‚Ѷ Pt 375 Curve
- Temperature Range:
- Thermistor/RTD:
- †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Coefficient:
- Thermistor:
- †Negative temperature coefficient
- RTD:
- †Positive temperature coefficient
- Temperature Stability:
- Thermistor:
- †0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- Heat Dissipation:
- †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
- Mounting:
- †Lower sensor into cooling tower tank, support cable at wiring box, use water proof connectors
- Wiring Terminations:
- †8' (2.44m) 2 conductor for SJO 18/2 water resistant black cable
- Weight:
- †0.8 lb (0.36 Kg)
- Approvals:
- †CE
- Warranty:
- †Lifetime
product series features
- Lifetime warranty
- Wide selection of thermistor and RTD curves
- Brass thermowell for quick temperature response
- Water resistant cable
- Ultra high accuracy optional
- One piece design
more information & related documents
Series Description
The Precon ST-TS* Series Tank Thermistor and RTD Sensors provide precision remote temperature sensing for cooling tower tanks for use in building automation systems. The active sensing element is a highly stable precision thermistor material or platinum RTD. The sensing element is rugged and sealed in a thermally conductive compound. The housing is a standard brass immersion well that has the weight to keep the sensor submersed and is compatable for all liquids suitable with brass. Water resistant cable is used.
Kele Description
TEMP SENSOR, IMMERS, 1K NI RTD, 3.25" PROBE, NO ENCL
Manufacturer
Kele
