TE-631AM-1 | Johnson Controls | Temperature Sensors & Transmitters

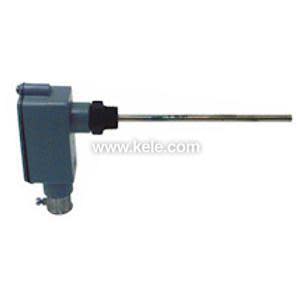

Immersion Temperature Sensor, 1k ohm Nickel Wire, 6 Probe,Metal Enclosure (includes TE-6300-612 Brass Threadless Well Adaptor for Retrofit to TE-6300W-103 or WZ-1000-5 Thermowells)

Brand:Johnson Controls

MPN:TE-631AM-1

SKU:TE-631AM-1

List Price:

$79.00

Today's Price:

$41.08

(login for better pricing)

Lead time of 6 days. Chat with Kele experts now

product datasheet

installation instructions

catalog page

product specifications

Accessory

TCC-111, TCC-12, UR, TE-6300W-101

Feature

Brass Adapter

Application

Hydronic HVAC

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

6 in

Sensor Element

1K Ohm Nickle-Iron Balco

Type

RTD

product series specifications

Accuracy:

Room/Probe: ± 0.34°F (± 0.19°C)

Averaging: ± 0.34°F (± 0.19°C)

Sensor Type: 1000 O nickel @ 70°F (21°C)

Temperature Range: -50° to 220°F (-46° to 104°C)

Sensitivity: Approx 3 O /°F (5.4 O /°C)

Operating Temperature: -50° to 122°F (-46° to 50°C)

Enclosure: PVC conduit box

Wiring Terminations: 6" (15.24 cm) of 22 AWG

Probe: Duct/OSA/Strap-on: 0.25" (0.64 cm) stainless steel

Wall: Thin film on circuit board with coating

Averaging: 0.093" (0.24 cm) copper

Warranty: 1 year

product series features

Easy to mount
Proven long performance
Many mounting styles
Single assembly ordering
PVC enclosure
Stainless steel insertion probe

more information & related documents

Series Description

The Johnson Controls TE-6300 Series Immersion 1000 Ohm Nickel RTD Sensors from Johnson Controls are specifically designed for HVAC applications and Building Automation Systems, BAS. The immersion sensors all feature a nickel-based active sensing element that has been proven to be very stable and robust with many years of service life. These sensors come complete and ready to install for their specific applications.

Kele Description

TEMP SENSOR, IMMERS, 1K NI RTD, 6.00" PROBE, METAL

Manufacturer

Johnson Controls
