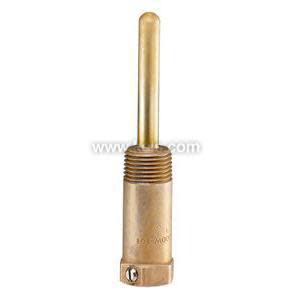

Cylindrical brass thermowell with threaded midsection and a closed-end tube at top

TE-6300W-101 | Johnson Controls | Temperature Sensors & Transmitters

Brass Thermowell, Copper Bulb, 6" Length, Clip Internal Thread, 1/2" NPT External, 2.38" Immersion Depth W/ Thermal Grease, No Adaptor Required

Brand:Johnson Controls

MPN:TE-6300W-101

SKU:TE-6300W-101

List Price:

$84.00

Today's Price:

$43.68

product datasheet

installation instructions

catalog page

product specifications

Probe Length

npt

Material

Brass

Internal Thread

Clip

Thermowell Length

6 in

External Thread

1/2 in NPT

Accessory

TCC-111,TCC-12

Application

Hydronic HVAC

product series specifications

Accuracy:

Room/Probe: ± 0.34°F (± 0.19°C)

Averaging: ± 0.34°F (± 0.19°C)

Sensor Type: 1000 Ω nickel @ 70°F (21°C)

Temperature Range: -50° to 220°F (-46° to 104°C)

Sensitivity: Approx 3 Ω /°F (5.4 Ω /°C)

Operating Temperature: -50° to 122°F (-46° to 50°C)

Enclosure: PVC conduit box

Wiring Terminations: 6" (15.24 cm) of 22 AWG

Probe: Duct/OSA/Strap-on: 0.25" (0.64 cm) stainless steel

Wall: Thin film on circuit board with coating

Averaging: 0.093" (0.24 cm) copper

Warranty: 1 year

product series features

Easy to mount
Proven long performance
Many mounting styles
Single assembly ordering
PVC enclosure
Stainless steel insertion probe

more information & related documents

Series Description

The Johnson Controls TE-6300 Series Immersion 1000 Ohm Nickel RTD Sensors from Johnson Controls are specifically designed for HVAC applications and Building Automation Systems, BAS. The immersion sensors all feature a nickel-based active sensing element that has been proven to be very stable and robust with many years of service life. These sensors come complete and ready to install for their specific applications.

Kele Description

THERMOWELL, BRASS, 6" LENGTH, 1/2" NPT EXTERNAL, C

Manufacturer

Johnson Controls
