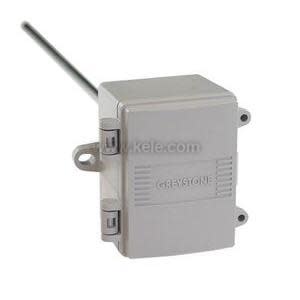

Grey box with long metallic probe attached

TSAPA02E | Greystone Energy Systems | Temperature Sensors & Transmitters

All Purpose Duct/Immersion Temperature Sensor, ABS, With Hinged and Gasketed Cover, 100 Ω Platinum, IEC 751, 385 Alpha, thin film, 300mm (12”) Probe

Brand:Greystone Energy Systems

MPN:TSAPA02E

SKU:TSAPA02E

List Price:

$76.00

Today's Price:

$39.52

product datasheet

installation instructions

Lead time of 9 days. Chat with Kele experts now

product specifications

Type

RTD

Housing Material

Poly

Probe Length

2 in

Sensor Element

100 Ohm Platinum RTD 385

Housing

Polycarbonate

Enclosure Rating

NEMA 4X,IP65

Accessory

T81U-XR,T85U-XR,T91U-XR

Application

Air Handling Unit,Duct Temperature

Output Signal

Resistance

product series specifications

Sensor Type: Thermistor or RTD

Sensor Accuracy:

Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F)

Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F)

Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)

Probe Sensing Range: -40 to 100°C (-40 to 212°F)

Ambient Operating Range: -40 to 50°C (-40 to 122°F), 5 to 95 %RH non-condensing

Wire Material: PVC insulated, parallel bonded, 22 AWG

Probe Material: 304 Series stainless-steel

Probe Diameter: 6 mm (0.236")

Standard Lengths: 50, 100, 150, 200, 300, and 450 mm (2", 4", 6", 8", 12", and 18")

Enclosure: ABS, UL94-V0, IP65 (NEMA 4X)

C: includes a terminal block

E: same as C, with thread adapter (1/2" NPT to M16), and cable gland fitting

Termination:

A: pigtail, 2 or 3 wire

C & E: terminal block, 2 or 3 wire

Country of Origin: Canada

Approvals: CE and RoHS

Warranty: 5 years

product series features

All-purpose, single-point, duct/immersion temperature sensor
Stainless-steel probe
Available in various lengths

more information & related documents

Series Description

The Greystone TSAPA, TSAPC, and TSAPE Series are all-purpose, single-point, duct/immersion temperature sensors that utilize precision sensors encapsulated in a 6-mm (0.236 in), 304 series stainless-steel probe. They are available in various lengths. All probes provide excellent heat transfer, fast response, and resistance to moisture penetration.

Kele Description

TEMP SENSOR, IMMERS, 100 RTD 385, 12.00" PROBE, POLY ENCL
