BA/1K-I-2 | BAPI | Temperature Sensors & Transmitters

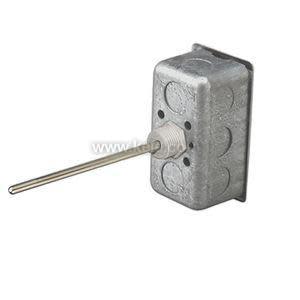

Immersion Temperature Sensor, 1K RTD 385, 2 Probe, Galvanized Enclosure, NEMA 1
Brand:BAPI
MPN:BA/1K-I-2
SKU:BA/1K-I-2-JB
List Price:
$60.65
Today's Price:
$31.54
product specifications
Accessory
T81U-XR, T85U-XR, TCC-111, TCC-12, UR
Feature
Stainless Steel Well
Application
Hydronic HVAC
Housing
Junction Box
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
2 in
Sensor Element
1K Platinum RTD 385
Type
RTD
product series specifications
- Accuracy:
- Thermistor:
- ±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- ±0.55‚Ñâ (0.30‚ÑÉ)
- Sensor Type:
- Thermistor:
- 10 kΩ Type II & III
- RTD:
- 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve
- Temperature Range:
- 32° to 158°F (-0° to 70°C)
- Stability:
- Thermistor:
- <0.036‚Ñâ (0.02‚ÑÉ) per year
- RTD:
- 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
- Heat Dissipation:
- 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
- Enclosure Rating:
- JB:
- NEMA 1, 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts
- BB:
- BB2:
- BB4:
- NEMA 1, BAPI Box 4- IP20 nylon & plastic
- WP:
- NEMA 3R Aluminum
- Mounting:
- Directly to pipe
- Wiring Terminations:
- 22 AWG wire, etched teflon leads
- Weight:
- I2:
- 0.65 lb (0.29 Kg)
- I4 & I8:
- 0.8 lb (0.36 Kg)
- Approvals:
- CE, RoHS
- Warranty:
- Lifetime
product series features
- Several enclosure styles with mounting tabs
- Probe lengths: 2 in, 4 in and 8 in
- Lifetime limited sensor warranty
more information & related documents
Series Description
The BAPI BA Series Thermistor and RTD Immersion Sensors are designed specifically for HVAC systems. They come in thermistor and RTD sensors and feature double encapsulated sensor etched Teflon leadwires to create a watertight package that can perform in the real world.
Kele Description
TEMP SENSOR, IMMERS, 1K RTD 385, 2.00" PROBE, METALLIC ENCL
Manufacturer
BAPI
