BA/10K-2-I-2 | BAPI | Temperature Sensors & Transmitters

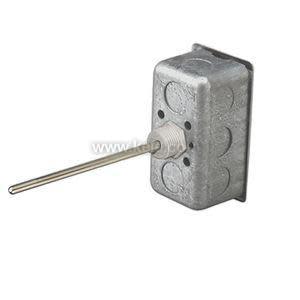

Immersion Temperature Sensor, 10K Type II Thermistor, 2 Probe, Galvanized Enclosure, NEMA 1

Brand:BAPI

MPN:BA/10K-2-I-2

SKU:BA/10K2-I-2-JB

List Price:

$34.16

Today's Price:

$17.76



Availability: 12 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Accessory

T81U-XR, T85U-XR, TCC-111, TCC-12, UR

Feature

Stainless Steel Well

Application

Hydronic HVAC

Housing

Junction Box

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

2 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.55‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III
    RTD:
  • 100Œ©, 1000Œ©, 385 curve; 1000Œ©, 375 curve
    Temperature Range:
  • 32° to 158°F (-0° to 70°C)
    Stability:
    Thermistor:
  • <0.036‚Ñâ (0.02‚ÑÉ) per year
    RTD:
  • 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
    Heat Dissipation:
  • 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
    Enclosure Rating:
    JB:
  • NEMA 1, 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts
    BB:
    BB2:
    BB4:
  • NEMA 1, BAPI Box 4- IP20 nylon & plastic
    WP:
  • NEMA 3R Aluminum
    Mounting:
  • Directly to pipe
    Wiring Terminations:
  • 22 AWG wire, etched teflon leads
    Weight:
    I2:
  • 0.65 lb (0.29 Kg)
    I4 & I8:
  • 0.8 lb (0.36 Kg)
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product series features

  • Several enclosure styles with mounting tabs
  • Probe lengths: 2 in, 4 in and 8 in
  • Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Thermistor and RTD Immersion Sensors are designed specifically for HVAC systems. They come in thermistor and RTD sensors and feature double encapsulated sensor etched Teflon leadwires to create a watertight package that can perform in the real world.

Kele Description

TEMP SENSOR, IMMERS, 10K TYPE II, 2.00" PROBE, METALLIC ENCL

Manufacturer

BAPI
