A/CP-IM-4"-BB | ACI | Temperature Sensors & Transmitters

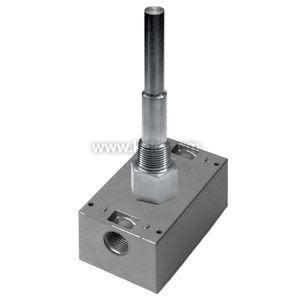

10,000 Ohm Thermistor (Type II), Immersion, Machined Well, 4", NEMA 3R Enclosure
Brand:ACI
MPN:A/CP-IM-4"-BB
SKU:A/CPIM4BB
List Price:
$160.00
Today's Price:
$83.20
Log in for customized pricingproduct specifications
Type
Thermistor
Housing Material
Metallic
Probe Length
4 in
Sensor Element
10K Type 2 Thermistor
Enclosure Rating
NEMA 3R
Accessory
T81U-XR,T85U-XR,TCC-111,TCC-12,UR
Feature
Stainless Steel Well
Application
Hydronic HVAC,Boilers,Pumps,Chiller Plant
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD: 100Ω, 1000Ω 385 curve
Temperature Range: -40° to 302°F (-40° to 150°C)
Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: <±0.1°C drift
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Galvanized metal box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight: 1.0 lb (0.45 Kg)
Approvals: CE, RoHs
Warranty: 5 years
product series features
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Stainless steel probes
more information & related documents
Series Description
The ACI Series Immersion Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The immersion sensors come in thermistor and RTD sensor curves compatible with most Building Automation Systems, BAS, available today. The A/*I Immersion Sensor threads into a 1/2 in (1.27 cm) well (included), which is secured into the pipe to a customer-supplied 1/2 in saddle or Thredolet®. The probe is tight fitting for accurate readings. Faster response can be achieved by using TCC-12 thermal conductive compound at the bottom of the well.
Kele Description
TEMP SENSOR, IMMERS, 10K TYPE II, 4.00" PROBE, METALLIC ENCL
Manufacturer
ACI
