A/4 | ACI | Temperature Sensors & Transmitters

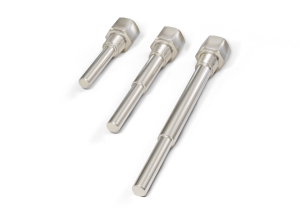

THERMOWELL, STAINLESS STEEL, 4.00" LENGTH, 1/2" NP

Manufacturer:ACI

MPN:A/4

SKU:A/4

List Price:

54.00

Today's Price:

30.24



(login for better pricing)
USD
Availability: 4 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Accuracy

Thermistor

±0.36℉ (0.2℃)

RTD

±0.50℉ (0.28℃)

Sensor Type

Thermistor

10 kΩ Type II & III, 20 kΩ, 100 kΩ

RTD

100Ω, 1000Ω 385 curve

Temperature Range

-40° to 302℉ (-40° to 150℃)

Stability

Thermistor

±0.24℉ (0.13℃) over five years

RTD

Heat Dissipation

Thermistor, 3 mW/℃ (power needed to raise the temperature by 1℃)

Enclosure Rating

NEMA 1, Galvanized metal box

Wiring Terminations

10" of 22 AWG wire or terminal strip

Weight

1.0 lb (0.45 Kg)

Approvals

RoHS, CE

Warranty

5 years

product family features

  • Five-year warranty
  • Wide selection of thermistor or RTD curves
  • Stainless steel probes

more information & related documents

Family Description

The ACI Series Immersion Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The immersion sensors come in thermistor and RTD sensor curves compatible with most Building Automation Systems, BAS, available today. The A/*I Immersion Sensor threads into a 1/2" (1.27 cm) well (included), which is secured into the pipe to a customer-supplied 1/2" saddle or Thredolet®. The probe is tight fitting for accurate readings. Faster response can be achieved by using TCC-12 thermal conductive compound at the bottom of the well.

Kele Description

THERMOWELL, STAINLESS STEEL, 4.00" LENGTH, 1/2" NP

Manufacturer

ACI
