TJBKR00 | Veris | Temperature Sensors & Transmitters

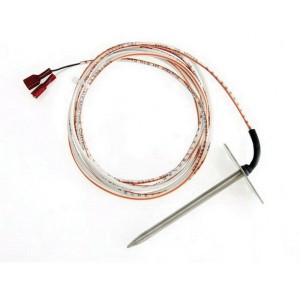

Wall temperature sensor, 10k Ω thermistor with 11k shunt, standard 5' of cable.

Brand:Veris

MPN:TJBKR00

SKU:TJBKR00

List Price:

$36.00

Today's Price:

$18.72



product specifications

Housing

VAV Box

Probe Length

4 in

Sensor Element

10K Thermistor Type 3 with 11K Shunt

Type

Thermistor

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor:

2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)

10k Type 2 & 3: ±0.06°F (0.1°C)

RTD:

100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO

RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve

Temperature Range:

Thermistor/RTD: -13 to 221°F (-25°F to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Mounting: Directly to duct

Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Probe length: 4" (10 cm) or 8" (20 cm)

Enclosure: plate mounted

Weight:

4": 0.15 lb (0.07 Kg)

8": 0.2 lb (0.09 Kg)

Warranty: 5 year

more information & related documents

Series Description

The Veris TJ Series VAV Box Duct Thermistor and RTD sensors are designed to mounts directly to the duct and is constructed for easy installation with optional quick disconnects when needed. The TJ Series comes in 4 in (10 cm) or 8 in (20 cm) lenghts.

Kele Description

VAV BOX DUCT 4IN 10K W/11KS THMS
