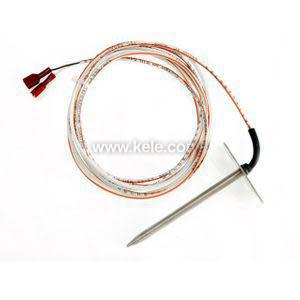

TJBFR02 | Veris | Temperature Sensors & Transmitters

VAV Box Duct 4In3K Thermistor Quick Connect 8Ft

Brand:Veris

MPN:TJBFR02

SKU:TJBFR02

List Price:

$44.00

Today's Price:

$22.88

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Housing

VAV Box

Probe Length

4 in

Sensor Element

3K Thermistor

Type

Thermistor

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor:

2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)

10k Type 2 & 3: ±0.06°F (0.1°C)

RTD:

100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO

RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve

Temperature Range:

Thermistor/RTD: -13 to 221°F (-25°F to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Mounting: Directly to duct

Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Probe length: 4" (10 cm) or 8" (20 cm)

Enclosure: plate mounted

Weight:

4": 0.15 lb (0.07 Kg)

8": 0.2 lb (0.09 Kg)

Warranty: 5 year

more information & related documents

Series Description

The Veris TJ Series VAV Box Duct Thermistor and RTD sensors are designed to mounts directly to the duct and is constructed for easy installation with optional quick disconnects when needed. The TJ Series comes in 4 in (10 cm) or 8 in (20 cm) lenghts.

Kele Description

VAV BOX DUCT 4IN3K THMS QUICK CONNECT 8FT

Manufacturer

Veris
