TGFDR00 | Veris | Temperature Sensors & Transmitters

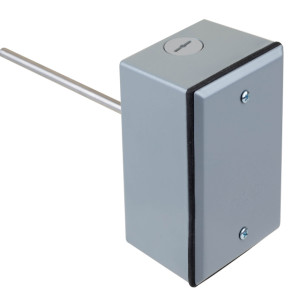

Duct temperature sensor, 10k Ω type 2 thermistor.
Brand:Veris
MPN:TGFDR00
SKU:TGFDR00
product specifications
Type
Thermistor
Housing Material
Metallic
Probe Length
18 in
Sensor Element
10K Type 2 Thermistor
Housing
Weather Proof
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C); 10k Type 2 & 3: ±0.06°F (0.1°C)
RTD: 100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ; RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve
Temperature Range Thermistor/RTD: -13° to 221°F (-25° to 105°C)
Output: Resistance, 4-20 mA @ 500Ω
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Mounting: Directly to duct Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m) Probe length: 4" (10 cm), 6" (15 cm), 8" (20 cm), 12" (30 cm), 18" (45 cm), 24" (61 cm) and 36" (91 cm)
Enclosure: mounting plate, handibox or weather proof enclosure
Weight: w/o different enclosures 4": 0.09 lb (0.04 Kg); 6": 0.11 lb (0.05 Kg); 8": 0.13 lb (0.06 Kg); 12": 0.24 lb (0.11 Kg); 18": 0.26 lb (0.12 Kg); 24": 0.35 lb (0.16 Kg); 36": 0.4 lb (0.18 Kg)
Approvals: CE
Warranty: 5 years
more information & related documents
Series Description
The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.
Kele Description
DUCT TEMP WTHRPRF BOX 18 IN 10K T2 THMS
Manufacturer
Veris
TD, TF, TG and TDDA Series installation Manual
