TFGCR02 | Veris | Temperature Sensors & Transmitters

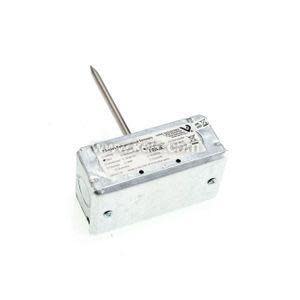

Duct Temp Hbox 24 In 1K Ohm 385 RTD NIST 2 Pt

Brand:Veris

MPN:TFGCR02

SKU:TFGCR02

List Price:

$165.00

Today's Price:

$85.80

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Type

RTD

Housing Material

Metallic

Probe Length

24 in

Sensor Element

1K Platinum RTD 385

Housing

Mounting Box

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C); 10k Type 2 & 3: ±0.06°F (0.1°C)

RTD: 100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ; RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Output: Resistance, 4-20 mA @ 500Ω

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Mounting: Directly to duct Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m) Probe length: 4" (10 cm), 6" (15 cm), 8" (20 cm), 12" (30 cm), 18" (45 cm), 24" (61 cm) and 36" (91 cm)

Enclosure: mounting plate, handibox or weather proof enclosure

Weight: w/o different enclosures 4": 0.09 lb (0.04 Kg); 6": 0.11 lb (0.05 Kg); 8": 0.13 lb (0.06 Kg); 12": 0.24 lb (0.11 Kg); 18": 0.26 lb (0.12 Kg); 24": 0.35 lb (0.16 Kg); 36": 0.4 lb (0.18 Kg)

Approvals: CE

Warranty: 5 years

more information & related documents

Series Description

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP HBOX 24 IN 1K OHM 385 RTD NIST 2 PT

Manufacturer

Veris
