* product series image displayed

TDKIR00 | Veris | Temperature Sensors & Transmitters

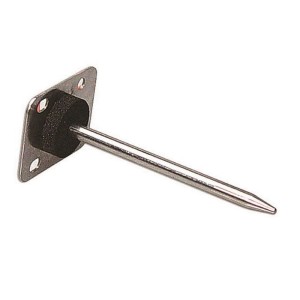

DUCT TEMP 36 IN 1K OHM BALCO RTD

Brand:Veris

MPN:TDKIR00

SKU:TDKIR00

List Price:

$141.00

Today's Price:

$73.32

(login for better pricing)

Lead time of 12 days. Chat with Kele experts now

product datasheet

installation instructions

product specifications

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

36 in

Sensor Element

1K Balco RTD

Type

RTD

product series specifications

Accuracy:

Thermistor:

±0.11‚Ñâ (0.2‚ÑÉ)

± 0.06‚Ñâ (0.1‚ÑÉ)

RTD:

±0.17‚Ñâ (0.3‚ÑÉ)

Sensor Type:

2.2kŒ©, 3k‚Ñ¶, 10k‚Ñ¶ Type 2 & 3, 20k‚Ñ¶, 100k‚Ñ¶

100‚Ñ¶, Pt 385 Curve; 1000‚Ñ¶, Pt 385 Curve

Temperature Range:

-13° to 221‚Ñâ (-25° to 105‚ÑÉ)

Resistance, 4-20 Ma @ 500‚Ñ¶

Temperature Coefficient:

Negative temperature coefficient

Positive temperature coefficient

Directly to duct

22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

4‚Ä= (10 cm), 6‚Ä= (15 cm), 8‚Ä= (20 cm), 12‚Ä= (30 cm), 18‚Ä= (45 cm), 24‚Ä= (61 cm) and 36‚Ä= (91 cm)

mounting plate, handiox or weather proof enclosure

w/o different enclosures

0.09 lb (0.04 Kg)

0.11 lb (0.05 Kg)

0.13 lb (0.06 Kg)

0.24 lb (0.11 Kg)

0.26 lb (0.12 Kg)

0.35 lb (0.16 Kg)

0.4 lb (0.18 Kg)

5 year

more information & related documents

Series Description

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP 36 IN 1K OHM BALCO RTD

Manufacturer

Veris
