TDKDR01

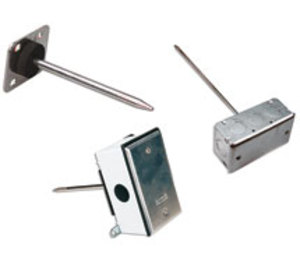

* product family image displayed

TDKDR01 | Veris Industries | Temperature Sensors & Transmitters

DUCT TEMP 36 IN 10K T2 THMS NIST 1 PT

Manufacturer:Veris Industries

MPN:TDKDR01

SKU:TDKDR01

List Price:

$117.00

Today's Price:

$60.84



Availability: Usually Ships in Less Than 12 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product family specifications

    Accuracy:
    Thermistor:
    2.2k, 3k,20k,100k:
  • ¬±0.11‚Ñâ (0.2‚ÑÉ)
    10k Type 2 & 3:
  • ¬± 0.06‚Ñâ (0.1‚ÑÉ)
    RTD:
    100, 100 385 curve:
  • ¬±0.17‚Ñâ (0.3‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 2.2kŒ©, 3k‚Ѷ, 10k‚Ѷ Type 2 & 3, 20k‚Ѷ, 100k‚Ѷ
    RTD:
  • 100‚Ѷ, Pt 385 Curve; 1000‚Ѷ, Pt 385 Curve
    Temperature Range:
    Thermistor/RTD:
  • -13¬∞ to 221‚Ñâ (-25¬∞ to 105‚ÑÉ)
    Output:
  • Resistance, 4-20 Ma @ 500‚Ѷ
    Temperature Coefficient:
    Thermistor:
  • Negative temperature coefficient
    RTD:
  • Positive temperature coefficient
    Mounting:
  • Directly to duct
    Wiring Terminations:
  • 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)
    Probe length:
  • 4‚Ä≥ (10 cm), 6‚Ä≥ (15 cm), 8‚Ä≥ (20 cm), 12‚Ä≥ (30 cm), 18‚Ä≥ (45 cm), 24‚Ä≥ (61 cm) and 36‚Ä≥ (91 cm)
    Enclosure:
  • mounting plate, handiox or weather proof enclosure
    Weight:
  • w/o different enclosures
    4″:
  • 0.09 lb (0.04 Kg)
    6″:
  • 0.11 lb (0.05 Kg)
    8″:
  • 0.13 lb (0.06 Kg)
    12″:
  • 0.24 lb (0.11 Kg)
    18″:
  • 0.26 lb (0.12 Kg)
    24″:
  • 0.35 lb (0.16 Kg)
    36″:
  • 0.4 lb (0.18 Kg)
    Approvals:
  • CE
    Warranty:
  • 5 year

product family features

more information & related documents

Family Description

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP 36 IN 10K T2 THMS NIST 1 PT

Manufacturer

Veris Industries

Related Documents

PDF - duct and remote probe datasheet.pdf duct and remote probe datasheet
PDF - duct installation manual.pdf duct installation manual
