TDKBR00 | Veris | Temperature Sensors & Transmitters

DUCT TEMP 36 IN 100 OHM 385 RTD

Brand:Veris

MPN:TDKBR00

SKU:TDKBR00

List Price:

$136.00

Today's Price:

$70.72



product specifications

Enclosure Rating

NEMA 1

Housing Material

Metallic

Probe Length

36 in

Sensor Element

100 Ohm Platinum RTD 385

Type

RTD

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C); 10k Type 2 & 3: ±0.06°F (0.1°C)

RTD: 100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO; RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve

Temperature Range Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Output: Resistance, 4-20 mA @ 500O

Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient

Mounting: Directly to duct Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m) Probe length: 4" (10 cm), 6" (15 cm), 8" (20 cm), 12" (30 cm), 18" (45 cm), 24" (61 cm) and 36" (91 cm)

Enclosure: mounting plate, handibox or weather proof enclosure

Weight: w/o different enclosures 4": 0.09 lb (0.04 Kg); 6": 0.11 lb (0.05 Kg); 8": 0.13 lb (0.06 Kg); 12": 0.24 lb (0.11 Kg); 18": 0.26 lb (0.12 Kg); 24": 0.35 lb (0.16 Kg); 36": 0.4 lb (0.18 Kg)

Approvals: CE

Warranty: 5 years

more information & related documents

Series Description

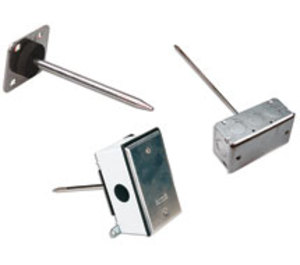

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP 36 IN 100 OHM 385 RTD

Manufacturer

Veris
