TDEDR01 | Veris | Temperature Sensors & Transmitters

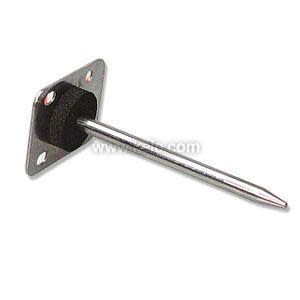

Duct Temp 12 In 10K T2 Thermistor NIST 1 Pt

Brand:Veris

MPN:TDEDR01

SKU:TDEDR01

List Price:

$103.00

Today's Price:

$53.56

(login for better pricing)

Lead time of 12 days. Chat with Kele experts now

product datasheet

installation instructions

product specifications

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

12 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

Accuracy:

Thermistor:

±0.11‚Ñâ (0.2‚ÑÉ)

± 0.06‚Ñâ (0.1‚ÑÉ)

RTD:

±0.17‚Ñâ (0.3‚ÑÉ)

Sensor Type:

2.2kŒ©, 3k‚Ñ¶, 10k‚Ñ¶ Type 2 & 3, 20k‚Ñ¶, 100k‚Ñ¶

100‚Ñ¶, Pt 385 Curve; 1000‚Ñ¶, Pt 385 Curve

Temperature Range:

-13° to 221‚Ñâ (-25° to 105‚ÑÉ)

Resistance, 4-20 Ma @ 500‚Ñ¶

Temperature Coefficient:

Negative temperature coefficient

Positive temperature coefficient

Directly to duct

22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

4‚Ä= (10 cm), 6‚Ä= (15 cm), 8‚Ä= (20 cm), 12‚Ä= (30 cm), 18‚Ä= (45 cm), 24‚Ä= (61 cm) and 36‚Ä= (91 cm)

mounting plate, handiox or weather proof enclosure

w/o different enclosures

0.09 lb (0.04 Kg)

0.11 lb (0.05 Kg)

0.13 lb (0.06 Kg)

0.24 lb (0.11 Kg)

0.26 lb (0.12 Kg)

0.35 lb (0.16 Kg)

0.4 lb (0.18 Kg)

5 year

more information & related documents

Series Description

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP 12 IN 10K T2 THMS NIST 1 PT

Manufacturer

Veris
