TDEBR02 | Veris | Temperature Sensors & Transmitters

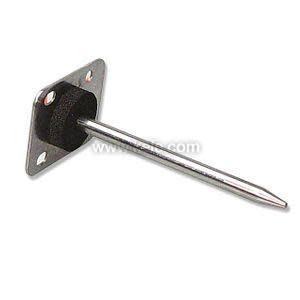

Duct Temp 12 In 100 Ohm 385 RTD NIST 2 Pt
Brand:Veris
MPN:TDEBR02
SKU:TDEBR02
product specifications
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
12 in
Sensor Element
100 Ohm Platinum RTD 385
Type
RTD
product series specifications
Accuracy:
Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C); 10k Type 2 & 3: ±0.06°F (0.1°C)
RTD: 100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO; RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve
Temperature Range Thermistor/RTD: -13° to 221°F (-25° to 105°C)
Output: Resistance, 4-20 mA @ 500O
Temperature Coefficient: Thermistor: Negative temperature coefficient; RTD: Positive temperature coefficient
Mounting: Directly to duct Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m) Probe length: 4" (10 cm), 6" (15 cm), 8" (20 cm), 12" (30 cm), 18" (45 cm), 24" (61 cm) and 36" (91 cm)
Enclosure: mounting plate, handibox or weather proof enclosure
Weight: w/o different enclosures 4": 0.09 lb (0.04 Kg); 6": 0.11 lb (0.05 Kg); 8": 0.13 lb (0.06 Kg); 12": 0.24 lb (0.11 Kg); 18": 0.26 lb (0.12 Kg); 24": 0.35 lb (0.16 Kg); 36": 0.4 lb (0.18 Kg)
Approvals: CE
Warranty: 5 years
more information & related documents
Series Description
The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.
Kele Description
DUCT TEMP 12 IN 100 OHM 385 RTD NIST 2 PT
Manufacturer
Veris
TD, TF, TG and TDDA Series installation Manual
