TDDAM13 | Veris | Temperature Sensors & Transmitters

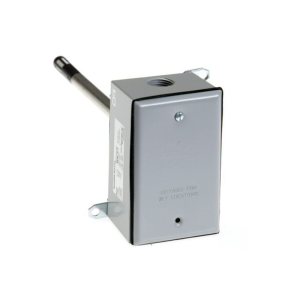

Duct temperature sensor, 8 inch probe, 4-20mA output, scaled -40°C to 50°C (-40°F to 122°F), with temperature documentation at 10°C, 25°C and 35°C.
Brand:Veris
MPN:TDDAM13
SKU:TDDAM13
product specifications
Housing Material
Metallic
Housing Rating
NEMA 1
Output
4 - 20 mA
Probe Length
8 in
Sensor Element
None
Type
Transmitter
product series specifications
- Accuracy:
- Thermistor:
- 2.2k, 3k,20k,100k:
- ±0.11‚Ñâ (0.2‚ÑÉ)
- 10k Type 2 & 3:
- ± 0.06‚Ñâ (0.1‚ÑÉ)
- RTD:
- 100, 100 385 curve:
- ±0.17‚Ñâ (0.3‚ÑÉ)
- Sensor Type:
- Thermistor:
- 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ
- RTD:
- 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve
- Temperature Range:
- Thermistor/RTD:
- -13° to 221‚Ñâ (-25° to 105‚ÑÉ)
- Output:
- Resistance, 4-20 Ma @ 500Ω
- Temperature Coefficient:
- Thermistor:
- Negative temperature coefficient
- RTD:
- Positive temperature coefficient
- Mounting:
- Directly to duct
- Wiring Terminations:
- 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)
- Probe length:
- 4‚Ä= (10 cm), 6‚Ä= (15 cm), 8‚Ä= (20 cm), 12‚Ä= (30 cm), 18‚Ä= (45 cm), 24‚Ä= (61 cm) and 36‚Ä= (91 cm)
- Enclosure:
- mounting plate, handiox or weather proof enclosure
- Weight:
- w/o different enclosures
- 4‚Ä=:
- 0.09 lb (0.04 Kg)
- 6‚Ä=:
- 0.11 lb (0.05 Kg)
- 8‚Ä=:
- 0.13 lb (0.06 Kg)
- 12‚Ä=:
- 0.24 lb (0.11 Kg)
- 18‚Ä=:
- 0.26 lb (0.12 Kg)
- 24‚Ä=:
- 0.35 lb (0.16 Kg)
- 36‚Ä=:
- 0.4 lb (0.18 Kg)
- Approvals:
- CE
- Warranty:
- 5 year
more information & related documents
Series Description
The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.
Kele Description
DUCT TEMP 8 IN XMTR 4-20MA -40-122F NIST 3 PT
Manufacturer
Veris
TD, TF, TG and TDDA Series installation Manual
