TE-702-C-3-A | MAMAC Systems | Temperature Sensors & Transmitters

TEMP SENSOR, DUCT, 1K RTD 385, 4.00" PROBE, METALLIC ENCL, NO OUTPUT

Brand:MAMAC Systems

MPN:TE-702-C-3-A

SKU:TE-702-C-3-A

List Price:

$67.66

Today's Price:

$35.18



Lead time of 14 days. Chat with Kele experts now

product specifications

Housing

Metallic Enclosure

Housing Material

Metallic

Housing Rating

NEMA 4

Output

Resistance

Probe Length

4 in

Sensor Element

1K Platinum RTD 385

Type

RTD

product series specifications

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD:

1KO Nickel, 1KO Balco: ±0.5°F (0.28°C)

100O, 1KO Pt 385: ±0.27°F (0.15°C)

Sensor Type

Thermistor: 2.252 kO, 3 kO, 10 kO Type II, III, 20 kO, 100 kO

RTD:

1kO Nickel

100O Pt 385 Curve

1kO Pt 385 Curve

Temperature Range Thermistor/RTD: -40° to 210°F (-40° to 100°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Enclosure Rating: Depends on the model

Mounting: Directly to duct, wall, or single gang box

Wiring Terminations: 6' (1.8m) pigtails

Weight: depends on model

Approvals: CE, RoHs

Warranty: 5 years

product series features

  • Wide selection of thermistor and RTD curves
  • Tip sensitive for precise temperature response

more information & related documents

Series Description

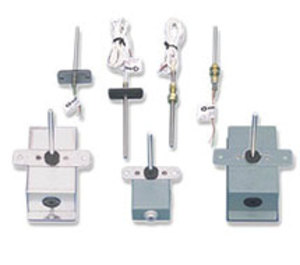

The Mamac Systems Model TE701/702 Duct Temperature Sensors provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The Mamac TE701A/B is a flanged mount duct temperature sensor. The Mamac TE701C/D is a bulkhead mount duct temperature sensor. The Mamac TE702A is a polycard enclosure duct temperature sensor. The Mamac TE702B is a galvanized steel enclosure duct temperature sensor. The Mamac TE702C is a painted steel enclosure duct temperature sensor.

Kele Description

TEMP SENSOR, DUCT, 1K RTD 385, 4.00" PROBE, METALLIC ENCL, NO OUTPUT

Manufacturer

MAMAC Systems
