TE-702-C-12-A | MAMAC Systems | Temperature Sensors & Transmitters
TEMP SENSOR, DUCT, 10K TYPE II, 4.00" PROBE, METALLIC ENCL, NO OUTPUT
Manufacturer:MAMAC Systems
MPN:TE-702-C-12-A
SKU:TE-702-C-12-A
List Price:
52.02
Today's Price:
29.13
add to cart
product family specifications
Accuracy
Thermistor
±0.36℉ (0.2℃)
RTD
1KΩ Nickel, 1KΩ Balco
±0.5℉ (0.28℃)
100Ω, 1KΩ Pt 385
±0.27℉ (0.15℃)
Sensor Type
Thermistor
2.252 kΩ, 3 kΩ, 10 kΩ Type II, III, 20 kΩ, 100 kΩ
RTD
1kΩ Nickel
100ΩΩ Pt 385 Curve
1kΩ Pt 385 Curve
Temperature Range
Thermistor/RTD
-40° to 210℉ (-40° to 100℃)
Temperature Coefficient
Thermistor
Negative temperature coefficient
RTD
Positive temperature coefficient
Enclosure Rating
Depends on the model
Mounting
Directly to duct, wall, or single gang box
Wiring Terminations
6' (1.8m) pigtails
Weight
depends on model
Approvals
CE, RoHs
Warranty
5 years
product family features
- Wide selection of thermistor and RTD curves
- Tip sensitive for precise temperature response
more information & related documents
Family Description

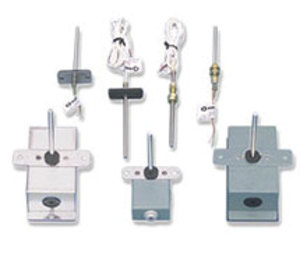

The Mamac Systems Model TE701/702 Duct Temperature Sensors provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The Mamac TE701A/B is a flanged mount duct temperature sensor. The Mamac TE701C/D is a bulkhead mount duct temperature sensor. The Mamac TE702A is a polycard enclosure duct temperature sensor. The Mamac TE702B is a galvanized steel enclosure duct temperature sensor. The Mamac TE702C is a painted steel enclosure duct temperature sensor.
Kele Description
TEMP SENSOR, DUCT, 10K TYPE II, 4.00" PROBE, METALLIC ENCL, NO OUTPUT
Manufacturer
MAMAC Systems
