TE-702-B-1-A | MAMAC Systems | Temperature Sensors & Transmitters
TEMP SENSOR, DUCT, 100 RTD 385, 4.00" PROBE, METALLIC ENCL, NO OUTPUT
Brand:MAMAC Systems
MPN:TE-702-B-1-A
SKU:TE-702-B-1-A
product specifications
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
4 in
Sensor Element
100 Ohm Platinum RTD 385
Type
RTD
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD:
1KO Nickel, 1KO Balco: ±0.5°F (0.28°C)
100O, 1KO Pt 385: ±0.27°F (0.15°C)
Sensor Type
Thermistor: 2.252 kO, 3 kO, 10 kO Type II, III, 20 kO, 100 kO
RTD:
1kO Nickel
100O Pt 385 Curve
1kO Pt 385 Curve
Temperature Range Thermistor/RTD: -40° to 210°F (-40° to 100°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Enclosure Rating: Depends on the model
Mounting: Directly to duct, wall, or single gang box
Wiring Terminations: 6' (1.8m) pigtails
Weight: depends on model
Approvals: CE, RoHs
Warranty: 5 years
product series features
- Wide selection of thermistor and RTD curves
- Tip sensitive for precise temperature response
more information & related documents
Series Description

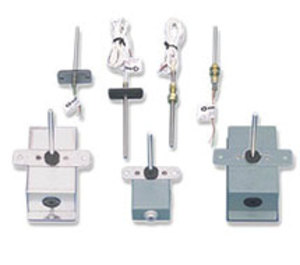

The Mamac Systems Model TE701/702 Duct Temperature Sensors provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The Mamac TE701A/B is a flanged mount duct temperature sensor. The Mamac TE701C/D is a bulkhead mount duct temperature sensor. The Mamac TE702A is a polycard enclosure duct temperature sensor. The Mamac TE702B is a galvanized steel enclosure duct temperature sensor. The Mamac TE702C is a painted steel enclosure duct temperature sensor.
Kele Description
TEMP SENSOR, DUCT, 100 RTD 385, 4.00" PROBE, METALLIC ENCL, NO OUTPUT
Manufacturer
MAMAC Systems
