ST-D3-XH-XL36

ST-D3-XH-XL36 | Kele | Temperature Sensors & Transmitters

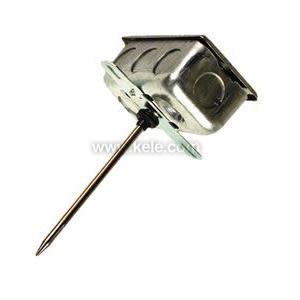

Duct Temperature Sensor, 10K Type III Thermistor, Handy Box Housing (Factory Installed), Custom Probe, 36

Brand:Kele

MPN:ST-D3-XH-XL36

SKU:ST-D3-XH-XL36

List Price:

$70.74

Today's Price:

$36.79



Lead time of 4 days. Chat with Kele experts now

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR, F-100-331

Feature

Knockouts

Application

Duct Temperature, Air Handling Unit

Housing

Handy Box

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

36 in

Sensor Element

10K Type 3 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • †±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
    Type 63:
  • †±0.72‚Ñâ (0.40‚ÑÉ)
    Type 71:
  • †+/-0.0774°F (0.043°C)

    Type 81, 85:
  • †±0.27‚Ñâ (0.15‚ÑÉ)
    Type 91:
  • †±0.54‚Ñâ (0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • †2.252 k‚Ѷ, 3 k‚Ѷ, 10 k‚Ѷ Type II, III & III w/11K shunt, 20 k‚Ѷ, 100 k‚Ѷ
    RTD:
    Type 63:
  • †1000‚Ѷ Nickel
    Type 71, 81:
  • †100‚Ѷ Pt 385 Curve
    Type 85:
  • †1000‚Ѷ Pt 385 Curve
    Type 91:
  • †1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • †-40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • †Negative temperature coefficient
    RTD:
  • †Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • †0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • †Max 0.04% after 1k hours @ 500 ‚ÑÉ
    Heat Dissipation:
  • †2.7 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Enclosure Rating:
  • †Depends on the model
    Mounting:
  • †Directly to duct, wall, or single gang box
    Wiring Terminations:
  • †8' (2.4m) of 24 AWG pigtails with prestripped ends, type 71 & 81 sensors have 18" leads
    Weight:
  • †0.25 lb (0.1 Kg) with no options
    Approvals:
  • †CE
    Warranty:
  • †Lifetime

product series features

  • Lifetime warranty
  • Wide selection of thermistor and RTD curves
  • Tip sensitive for precise temperature response
  • Greenfield fitting standard

more information & related documents

Series Description

The PreCon Model ST-D* Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The active sensing element is a highly stable precision thermistor material or platinum RTD. The sensing element is sealed with a thermally conductive compound in a 9 in (22.8 cm) long 304 stainless steel tube attached to a 4 in (10 cm) electrical strap. The slots in the mounting bracket form mounting ears for direct duct mounting and standard electrical boxes. The grommet on the tube fitting seals a 9/16 in (1.43 cm) insertion hole.

Kele Description

TEMP SENSOR, DUCT, 10K TYPE III, 36.00" PROBE, METALLIC ENCL

Manufacturer

Kele
