KTV-24-CP8

KTV-24-XCP8 | Kele | Temperature Sensors & Transmitters

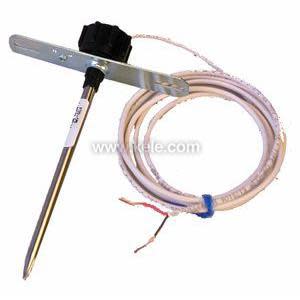

VAV Box Duct Temperature Sensor, 10K Type II Thermistor, 8' Non-Shielded 22AWG Plenum Cable

Brand:Kele

MPN:KTV-24-XCP8

SKU:KTV-24-CP8

List Price:

$32.80

Today's Price:

$17.06



Lead time of 7 days. Chat with Kele experts now

product specifications

Accessory

T81U-XR, T85U-XR, T91U-XR, UR

Feature

Plenum Cable

Application

Variable Air Volume, VAV, Duct Temperature

Housing Rating

None

Output

Resistance

Probe Length

4.875 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.50‚Ñâ (0.28‚ÑÉ)
    RTD:
  • ±0.60‚Ñâ (0.33‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 2.252k‚Ѷ, 3k‚Ѷ, 10k‚Ѷ Type II, III & III w/11K shunt, 20k‚Ѷ, 100k‚Ѷ
    RTD:
    Type 71, 81:
  • 100‚Ѷ Pt 385 Curve
    Type 85:
  • 1000‚Ѷ Pt 385 Curve
    Type 91:
  • 1000‚Ѷ Pt 375 Curve
    Temperature Range:
    Thermistor/RTD:
  • -40° to 221‚Ñâ (-40° to 105‚ÑÉ)
    Temperature Coefficient:
    Thermistor:
  • Negative temperature coefficient
    RTD:
  • Positive temperature coefficient
    Temperature Stability:
    Thermistor:
  • 0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • Max 0.04% after 1k hours @ 500 ‚ÑÉ
    Heat Dissipation:
  • 2.7 mW/°C (power needed to raise the temperature 1°C)
    Enclosure Rating:
  • Depends on the model
    Mounting:
  • T-bar with protective grommet seal, Directly to Duct or Single gang box
    Wiring Terminations:
  • 5' (1.5m), 24 AWG gray wire leads with optional quick disconnects and plenum rated cable, type 71 & 81 sensors have 18‚Ä= leads
    Probe:
  • Seamless 304 stainless steel tube, 1‚ÅÑ4" OD, 4.87" (12.4 cm) long
    Weight:
  • 0.15 lbs (0.07 Kg)
    Approvals:
  • CE
    Warranty:
  • 3 years

product series features

  • Economical
  • Stainless steel probes
  • Three-year warranty
  • Wide thermistor or RTD sensor selections
  • Simple traditional mounting
  • OPTIONS
  • Greenfield fittings
  • Plenum cable
  • 1/4 in quick connects
  • Volume based options excepted

more information & related documents

Series Description

The Kele KTV VAV Box Duct Thermostor and RTD Sensors from Kele are designed to be cost-effective with accuracies of 0.5 degrees F (0.28 degrees C). Each VAV box duct sensor mounts directly to the duct and is constructed for easy installation with optional quick disconnects and plenum cable when needed. The thermistor is made of a very stable, pre-aged material that offers long-life reliability for HVAC control. The platinum RTD comes in 100 Ohm and 1000 Ohm versions. All sensors come with three-year warranty.

Kele Description

TEMP SENSOR, DUCT, 10K TYPE II, 4.875" PROBE, NO ENCL, NO OUTPUT

Manufacturer

Kele
