TE-DFN-F-25-4-3-00

TE-DFN-F2543-00 | Dwyer Instruments | Temperature Sensors & Transmitters

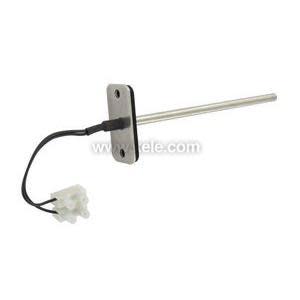

Duct Temperature Sensor, Probe Only, 20K Thermistor, 2.5 Insertion, 1/4 Probe Diameter, 4 Flying Leads with Spade Terminals, No Connection- Replacement Probe

Brand:Dwyer Instruments

MPN:TE-DFN-F2543-00

SKU:TE-DFN-F-25-4-3-00

List Price:

$35.90

Today's Price:

$18.67



Availability: Usually Ships in Less Than 10 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Application

VAV, Variable Air Volume, Air Handling Unit

Housing Rating

None

Lead Length

4 in

Output

Resistance

Probe Length

2.50 in

Sensor Element

20K Thermistor

Type

Thermistor

product series specifications

    Accuracy:
  • †Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F)
    Temperature Limits:
  • †Operating: -40 to 302?F (-40 to 150?C)
    Cable Rating:
  • Plenum option includes UL listed plenum cable
    Housing Material:
  • Meets UL, 94 V-O polycarbonate plastic
    Housing Rating:
  • NEMA 4X (IP66) (DFW, IBW Only)
    Weight:
  • 5.3 oz (150.3 g)
    Agency Approvals:
  • Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)

product series features

  • Easy to mount external tab housing and flange options for duct applications
  • 1/4 turn housing cover with chain to prevent dropping
  • Multiple conduit knockouts for easy installation positioning
  • 8 ft plenum rated cable option
  • Terminal connector eliminates need for wire nuts

more information & related documents

Series Description

The TE Series duct and immersion building automation temperature sensors can be used to monitor air or water temperature throughout a building management system or an air handler unit. Duct or immersion are options available with or without an enclosure.

Kele Description

TEMP SENSOR, DUCT, PROBE ONLY, 20K THERM, 2.5" PROBE, NO FITTING

Manufacturer

Dwyer Instruments
