TE-DFN-C1244-00 | Dwyer Instruments | Temperature Sensors & Transmitters

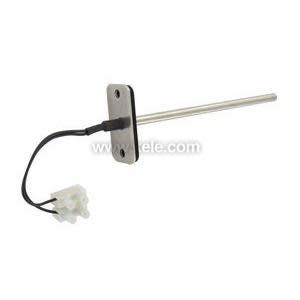

Duct Temperature Sensor, Probe Only, 3K Thermistor, 12 Insertion, 1/4 Probe Diameter, 4 Flying Leads with Terminal Block, No Connection- Replacement Probe

Brand:Dwyer Instruments

MPN:TE-DFN-C1244-00

SKU:TE-DFN-C12-4-4-00

List Price:

$34.04

Today's Price:

$17.70

Lead time of 10 days. Chat with Kele experts now

product datasheet

product specifications

Application

VAV, Variable Air Volume, Air Handling Unit

Lead Length

4 in

Probe Length

12 in

Sensor Element

3K Thermistor

Type

Thermistor

Output Signal

Resistance

product series specifications

Accuracy: Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F)

Temperature Limits: Operating: -40 to 302°F (-40 to 150°C)

Cable Rating: Plenum option includes UL listed plenum cable

Housing Material: Meets UL, 94 V-O polycarbonate plastic

Housing Rating: NEMA 4X (IP66) (DFW, IBW Only)

Weight: 5.3 oz (150.3 g)

Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)

product series features

Easy to mount external tab housing and flange options for duct applications
1/4 turn housing cover with chain to prevent dropping
Multiple conduit knockouts for easy installation positioning
8 ft plenum rated cable option
Terminal connector eliminates need for wire nuts

more information & related documents

Series Description

The TE Series duct and immersion building automation temperature sensors can be used to monitor air or water temperature throughout a building management system or an air handler unit. Duct or immersion are options available with or without an enclosure.

Kele Description

TEMP SENSOR, DUCT, PROBE ONLY, 3K THERM, 12" PROBE, NO FITTING

Manufacturer

Dwyer Instruments
