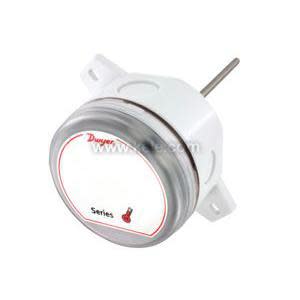

TE-DFG-F1843-00 | Dwyer Instruments | Temperature Sensors & Transmitters
Duct Temperature Sensor, With Housing, 20K Thermistor, 18 Insertion, 1/4 Probe Diameter, 4 Flying Leads with Spade Terminals, No Connection- Replacement Probe
Brand:Dwyer Instruments
MPN:TE-DFG-F1843-00
SKU:TE-DFG-F-18-4-3-00
product specifications
Application
VAV, Variable Air Volume, Air Handling Unit
Housing Material
Poly
Housing Rating
NEMA 1
Lead Length
4 in
Output
Resistance
Probe Length
18 in
Sensor Element
20K Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- †Thermistor temperature sensor: ±0.22°C @ 25°C (±0.4°F @ 77°F); RTD temperature sensor: DIN class A: ±0.15°C @ 0°C (±0.28°F @ 32°F)
- Temperature Limits:
- †Operating: -40 to 302?F (-40 to 150?C)
- Cable Rating:
- Plenum option includes UL listed plenum cable
- Housing Material:
- Meets UL, 94 V-O polycarbonate plastic
- Housing Rating:
- NEMA 4X (IP66) (DFW, IBW Only)
- Weight:
- 5.3 oz (150.3 g)
- Agency Approvals:
- Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
product series features
- Easy to mount external tab housing and flange options for duct applications
- 1/4 turn housing cover with chain to prevent dropping
- Multiple conduit knockouts for easy installation positioning
- 8 ft plenum rated cable option
- Terminal connector eliminates need for wire nuts
more information & related documents
Series Description
The TE Series duct and immersion building automation temperature sensors can be used to monitor air or water temperature throughout a building management system or an air handler unit. Duct or immersion are options available with or without an enclosure.
Kele Description
TEMP SENSOR, DUCT, HOUSING, 20K THERM, 18" PROBE (DFN/DFG ONLY), NO FITTING
Manufacturer
Dwyer Instruments
