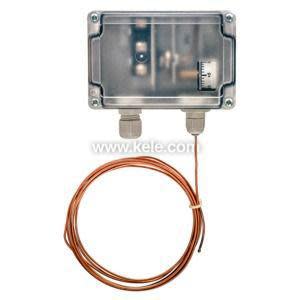

01DTS-505 | Belimo | Temperature Sensors & Transmitters
Low Temperature Detection Sensor, switch, auto reset, Probe Length 20 ft 6 m
Brand:Belimo
MPN:01DTS-505
SKU:01DTS-505
2 in stock
product specifications
Housing Material
Poly
Housing Rating
NEMA 4
Output
Resistance
Probe Length
20 ft
Sensor Element
None
Type
Accessory
product series specifications
- Enclosure:
- NEMA 4X/IP65
- Cover:
- ABS, transparent
- Accuracy:
- ±0.9°F ±0.5°C
- Measuring Range:
- 14°F to 54°F -10°C to 12°C
- Operating Humidity:
- 85% RH non-condensing
- Operating Temperature:
- -30°F to 160°F -35°C to 70°C
- Weight:
- 0.41 lbs.
- Approvals:
- CE compliant, ISO 9001, UL2043, UL50
- Warranty:
- 5 year warranty
product series features
- Manual or Auto reset versions available
- Various capillary lengths available
- CE, UL compliant
- 5 year warranty
more information & related documents
Series Description
The Belimo 01DTS Low Temperature Detection Sensor Series are used for temperature monitoring on HVAC equipment that requires low-temperature cutout protection to prevent cooling coils from freezing. Manual or automatic reset versions available as well as various capillary lengths.
Kele Description
LOW TEMP DETECTION CAPILLARY PIPE 20 FT (6 M)
Manufacturer
Belimo
