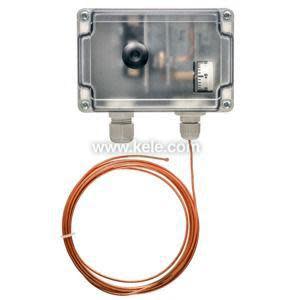

Square blue-grey box with transparent lid and long coiled copper capillary

01DTS-504X | Belimo | Temperature Sensors & Transmitters

Low Temperature Detection Sensor, switch, manual reset, Probe Length 10 ft [3 m]

Brand:Belimo

MPN:01DTS-504X

SKU:01DTS-504X

List Price:

$367.00

Today's Price:

$190.84

installation instructions

product specifications

Type

Accessory

Housing Material

Poly

Probe Length

10 ft

Sensor Element

None

Enclosure Rating

NEMA 4

Output Signal

Resistance

product series specifications

Enclosure: NEMA 4X/IP65

Cover: ABS, transparent

Accuracy: ±0.9°F [±0.5°C]

Measuring Range: 14°F to 54°F [-10°C to 12°C]

Operating Humidity: 85% RH non-condensing

Operating Temperature: -30°F to 160°F [-35°C to 70°C]

Weight: 0.41 lbs.

Approvals: CE compliant, ISO 9001, UL2043, UL50

Warranty: 5 year

product series features

Manual or Auto reset versions available
Various capillary lengths available
CE, UL compliant
5 year warranty

more information & related documents

Series Description

The Belimo 01DTS Low Temperature Detection Sensor Series are used for temperature monitoring on HVAC equipment that requires low-temperature cutout protection to prevent cooling coils from freezing. Manual or automatic reset versions available as well as various capillary lengths.

Kele Description

LOW TEMP DETECTION CAPILLARY PIPE 10 FT (3 M)

Manufacturer

Belimo
