BA/T1K-D-8-BB | BAPI | Temperature Sensors & Transmitters

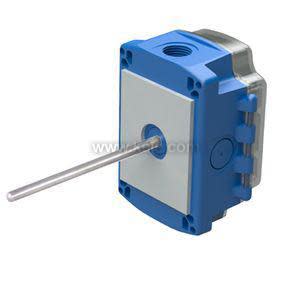

Duct Temperature Transmitter, 1K Platinum RTD with 4-20 mA Output, 8 Probe, BAPI-Box Enclosure- IP66 Rated, UV-Resistant Polycarbonate

Brand:BAPI

MPN:BA/T1K-D-8-BB

SKU:BA/T1KD8BB

List Price:

$242.00

Today's Price:

$125.84



Availability: Lead time > 15 days. See alternatives below or chat with Sales.
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Feature

Transmitter

Application

Duct Temperature, Air Handling Unit

Housing Material

Poly

Housing Rating

NEMA 4, IP66

Output

4-20 mA

Probe Length

8 in

Sensor Element

None

Type

RTD

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.55‚Ñâ (±0.30‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III
    RTD:
  • 100‚Ѷ, 1000‚Ѷ, 385 curve; 1000‚Ѷ, 375 curve
    Temperature Range:
  • 32° to 158‚Ñâ (-0° to 70‚ÑÉ)
    Stability:
  • < 0.036‚Ñâ (0.02‚ÑÉ) per year, 0.14‚ÑÉ with 6,000 continuous hours at 400‚ÑÉ
    Heat Dissipation:
  • 2.7 mW/‚ÑÉ (power need to raise the temperature 1‚ÑÉ), 0.4‚ÑÉ/mW at 0‚ÑÉ
    Enclosure/Weight:
    NB:
  • No Box; 0.5 lb (0.23 Kg)
    JB:
  • 2‚Ä= x 4‚Ä= J-box with 1/2‚Ä= knockouts: 0.65 lb (0.29 Kg)
    BB:
  • BAPI-Box - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
    BB2:
  • BAPI-Box 2 - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
    WP:
  • NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)
    Mounting:
  • Directly to duct
    Wiring Terminations:
  • 22 AWG wire, etched teflon leads
    Approvals:
  • CE, RoHS
    Warranty:
  • Lifetime

product series features

  • Several enclosure styles with mounting tabs for easy installation
  • Probe lenghts: 4 in, 8 in, 12 in and 18 in
  • Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Duct Thermistor and RTD Sensors are available in a variety of easy-to-mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires and encapsulated sensors to create a watertight package that can perform in the real world.

Kele Description

DUCT 8IN D4-20MA XMTR W/BB
