BA/100-D-12"-BB2 | BAPI | Temperature Sensors & Transmitters

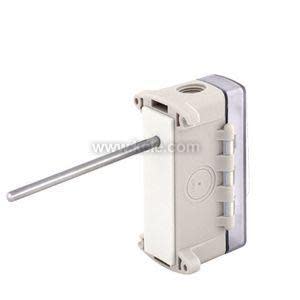

Duct Temperature Sensor, 100 RTD 385, 12" Probe, BAPI-BOX 2 Enclosure- IP66 Rated, UV-Resistant Polycarbonate
Brand:BAPI
MPN:BA/100-D-12"-BB2
SKU:BA/100-D12-BB2
product specifications
Type
RTD
Housing Material
Poly
Probe Length
12 in
Sensor Element
100 Ohm Platinum RTD 385
Accessory
T85U-XR,T81U-XR,T91U-XR,UR
Application
Duct Temperature,Air Handling Unit
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.55°F (±0.30°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III
RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve
Temperature Range: 32° to 158°F (0° to 70°C)
Stability: < 0.036°F (0.02°C) per year, 0.14°C with 6,000 continuous hours at 400°C
Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C
Enclosure/Weight:
NB: No Box; 0.5 lb (0.23 Kg)
JB: 2" x 4" J-box with 1/2" knockouts: 0.65 lb (0.29 Kg)
WP: NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)
Mounting: Directly to duct
Wiring Terminations: 22 AWG wire, etched teflon leads
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- Several enclosure styles with mounting tabs for easy installation
- Probe lenghts: 4 in, 8 in, 12 in and 18 in
- Lifetime limited sensor warranty
more information & related documents
Series Description
The BAPI BA Series Duct Thermistor and RTD Sensors are available in a variety of easy-to-mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires and encapsulated sensors to create a watertight package that can perform in the real world.
Kele Description
TEMP SENSOR, DUCT, 100 RTD 385, 12.00" PROBE, POLY ENCL
Manufacturer
BAPI
