BA/1K[375]-D-18"-BB4 | BAPI | Temperature Sensors & Transmitters

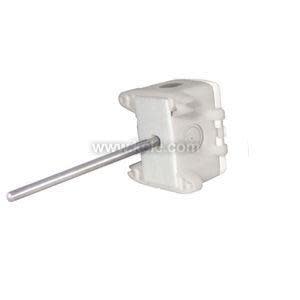

Duct Temperature Sensor, 1K Platinum RTD (375 curve), 18" Probe, BAPI-BOX 4 Enclosure- IP10 Rated Nylon and Plastic Enclosure (IP44 Rated With Knockout Plug in the Open Port)
Brand:BAPI
MPN:BA/1K[375]-D-18"-BB4
SKU:BA/1K375-D18BB4
List Price:
$43.73
Today's Price:
$22.74
Log in for customized pricingproduct specifications
Type
RTD
Housing Material
Poly
Probe Length
18 in
Sensor Element
1K Platinum RTD 375
Enclosure Rating
NEMA 3R,IP10
Accessory
T85U-XR,T81U-XR,T91U-XR,UR
Application
Duct Temperature,Air Handling Unit
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.55°F (±0.30°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III
RTD: 100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve
Temperature Range: 32° to 158°F (0° to 70°C)
Stability: < 0.036°F (0.02°C) per year, 0.14°C with 6,000 continuous hours at 400°C
Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C
Enclosure/Weight:
NB: No Box; 0.5 lb (0.23 Kg)
JB: 2" x 4" J-box with 1/2" knockouts: 0.65 lb (0.29 Kg)
BB: BAPI-Box - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
BB2: BAPI-Box 2 - IP66 rated, UV-resistant polycarbonate; 0.8 lb (0.36 Kg)
WP: NEMA 3R cast aluminum; 0.8 lb (0.36 Kg)
Mounting: Directly to duct
Wiring Terminations: 22 AWG wire, etched teflon leads
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- Several enclosure styles with mounting tabs for easy installation
- Probe lenghts: 4 in, 8 in, 12 in and 18 in
- Lifetime limited sensor warranty
more information & related documents
Series Description
The BAPI BA Series Duct Thermistor and RTD Sensors are available in a variety of easy-to-mount installation types. They come in thermistor and RTD sensors and feature etched Teflon leadwires and encapsulated sensors to create a watertight package that can perform in the real world.
Kele Description
TEMP SENSOR, DUCT, 1K RTD 375, 18.00" PROBE, POLY ENCL
Manufacturer
BAPI
