A/TT1K-D-4"-1-4X | ACI | Temperature Sensors & Transmitters

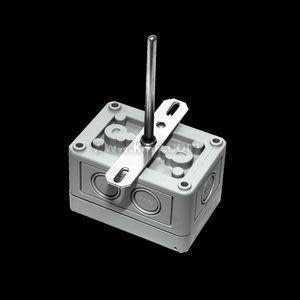

Platinum RTD, Duct, 1K Ω RTD, 4", 1-5 VDC, NEMA 4X, 0-1K°F
Brand:ACI
MPN:A/TT1K-D-4"-1-4X
SKU:TT1K0100D44X1
product specifications
Type
RTD
Housing Material
Poly
Probe Length
4 in
Sensor Element
1K Platinum RTD 385
Housing
Handy Box
Output
1 - 5 V
Enclosure Rating
NEMA 4X
Accessory
TT100-0100-BO-1,TT100-0100-BO-2,TT100-0100-BO-4,TT1K-0100-BO-1,TT1K-0100-BO-2,TT1K-0100-BO-4,UR
Application
Duct Temperature,Air Handling Unit
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD: ±0.50°F (0.28°C)
Sensor Type:
Thermistor: 10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD: 100Ω, 1000Ω 385 curve
Temperature Range: -40° to 275°F (-40° to 135°C)
Stability:
Thermistor: 0.24°F (0.13°C) over five years
RTD: <±0.1°C drift
Measurement Range: -40° to 302°F (-40° to 150°C)
Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)
Enclosure Rating: NEMA 1, Galvanized metal box
Wiring Terminations: 10" of 22 AWG wire or terminal strip
Weight:
4": 0.6 lb (0.27 Kg)
8": 0.72 lb (0.72 Kg)
12": 0.9 lb (0.41 Kg)
18": 1.0 lb (0.45 Kg)
Approvals: CE, RoHs
Warranty: 5 years
product series features
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Stainless steel probes
more information & related documents
Series Description
The ACI Duct Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The duct sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Duct sensors come with a foam-backed handy box and 8 in probe. The A/*D Duct Sensor should be mounted close to the center of the duct and penetrate through any duct insulation at least 1 in (2.5 cm) into the airflow. The probes are sensitive within 1 in of the tip and insert through a 3/8 in (1 cm) hole. Use standard metal screws to secure to the duct.
Kele Description
TEMP XMTR, DUCT, 1K RTD 385, 4.00" PROBE, POLY ENCL
