A/CP-DO-4-10'CL2P | ACI | Temperature Sensors & Transmitters

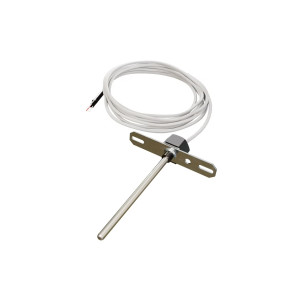

Thermistor, Duct, 10K Ω (Type II), 4, No Box, 10 ft Conductor Plenum Rated Cable

Brand:ACI

MPN:A/CP-DO-4-10'CL2P

SKU:A/CP-DO4-10CL2P

List Price:

$60.60

Today's Price:

$31.51



Availability: 5 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product datasheet
installation instructions
catalog page

product specifications

Accessory

TT100-0100-BO-1, TT100-0100-BO-2, TT100-0100-BO-4, TT1K-0100-BO-1, TT1K-0100-BO-2, TT1K-0100-BO-4, UR, F-1000-331

Application

Duct Temperature, Air Handling Unit

Housing Material

None

Housing Rating

NEMA 3R

Output

Resistance

Probe Length

4 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
  • ±0.36‚Ñâ (0.2‚ÑÉ)
    RTD:
  • ±0.50‚Ñâ (0.28‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 10 k‚Ѷ Type II & III, 20 k‚Ѷ
    RTD:
  • 100Œ©, 1000Œ© 385 curve
    Temperature Range:
  • -40° to 275‚Ñâ (-40° to 135‚ÑÉ)
    Stability:
    Thermistor:
  • 0.24‚Ñâ (0.13‚ÑÉ) over five years
    RTD:
  • <±0.1‚ÑÉ drift
    Heat Dissipation:
  • Thermistor, 3 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
    Measurement Range:
  • -40° to 302‚Ñâ (-40° to 150‚ÑÉ)
    Enclosure Rating:
  • NEMA 3R, Plastic Box
    Wiring Terminations:
  • 10‚Ä=of 22 AWG wire
    Probe:
  • Seamless Stainless steel tube, 1/4‚Ä= (0.64 cm) O.D.
    Dimensions:
  • less probe 4.5‚Ä=W x 2.3‚Ä=H x 2.3‚Ä=D (11.4 x 5.8 x 5.8 cm)
    Weight:
    Duct:
  • 0.72 lb (0.32 Kg)
    Immersion:
  • 1.0 lb (0.45 Kg)
    Approvals:
  • CE, RoHS
    Warranty:
  • 5 years

product series features

  • 5 year warranty
  • Selection of thermistors and RTDs
  • Immersion and duct applications

more information & related documents

Series Description

The ACI Plastic Box Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The A/*PB duct and immersion sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today.

Kele Description

TEMP SENSOR, DUCT, 10K TYPE II, 4.00", POLY ENCL, NO OUTPUT

Manufacturer

ACI
