A/AN-D-4-GD | ACI | Temperature Sensors & Transmitters

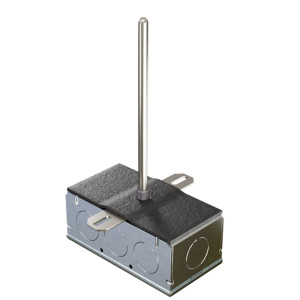

Thermistor, Duct, 10K Ω (Type III), 4, Galvanized Box
Brand:ACI
MPN:A/AN-D-4-GD
SKU:A/AN-D4-GD
List Price:
$35.42
Today's Price:
$18.42
product specifications
Accessory
TT100-0100-BO-1, TT100-0100-BO-2, TT100-0100-BO-4, TT1K-0100-BO-1, TT1K-0100-BO-2, TT1K-0100-BO-4, UR, F-1000-331
Application
Duct Temperature, Air Handling Unit
Housing
Handy Box
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
4 in
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- Thermistor:
- ±0.36‚Ñâ (0.2‚ÑÉ)
- RTD:
- ±0.50‚Ñâ (0.28‚ÑÉ)
- Sensor Type:
- Thermistor:
- 10 kΩ Type II & III, 20 kΩ, 100 kΩ
- RTD:
- 100Ω, 1000Ω 385 curve
- Temperature Range:
- -40° to 275‚Ñâ (-40° to 135‚ÑÉ)
- Stability:
- Thermistor:
- 0.24‚Ñâ (0.13‚ÑÉ) over five years
- RTD:
- ±0.1‚ÑÉ drift
- Heat Dissipation:
- Thermistor, 3 mW/‚ÑÉ (power needed to raise the temperature by 1‚ÑÉ)
- Measurement Range:
- -40° to 302‚Ñâ (-40° to 150‚ÑÉ)
- Enclosure Rating:
- NEMA 1, Galvanized metal box
- Wiring Terminations:
- 10‚Ä= of 22 AWG wire or terminal strip
- Weight:
- 4‚Ä=:
- 0.6 lb (0.27 Kg)
- 8‚Ä=:
- 0.72 lb (0.72 Kg)
- 12‚Ä=:
- 0.9 lb (0.41 Kg)
- 18‚Ä=:
- 1.0 lb (0.45 Kg)
- Approvals:
- CE
- Warranty:
- 5 years
product series features
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Stainless steel probes
more information & related documents
Series Description
The ACI Duct Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The duct sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Duct sensors come with a foam-backed handy box and 8 in probe. The A/*D Duct Sensor should be mounted close to the center of the duct and penetrate through any duct insulation at least 1 in (2.5 cm) into the airflow. The probes are sensitive within 1 in of the tip and insert through a 3/8 in (1 cm) hole. Use standard metal screws to secure to the duct.
Kele Description
TEMP SENSOR, DUCT, 10K TYPE III, 4.00" PROBE, METALLIC ENCL
Manufacturer
ACI
