A/BALCO-D-8-GD | ACI | Temperature Sensors & Transmitters

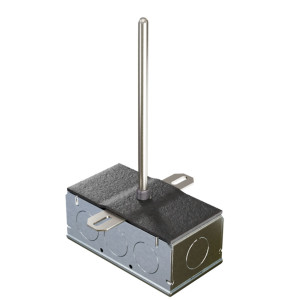

TEMP SENSOR, DUCT, BALCO, DUCT, A/BALCO, 8", GALV. BOX
Manufacturer:ACI
MPN:A/BALCO-D-8-GD
SKU:A/BALCO-D-8-GD
List Price:
66.30
Today's Price:
37.13
add to cart
product family specifications
Accuracy
Thermistor
±0.36℉ (0.2℃)
RTD
±0.50℉ (0.28℃)
Sensor Type
Thermistor
10 kΩ Type II & III, 20 kΩ
RTD
100Ω, 1000Ω 385 curve
Temperature Range
-40° to 275℉ (-40° to 135℃)
Stability
Thermistor
0.24℉ (0.13℃) over five years
RTD
<±0.1℃ drift
Heat Dissipation
Thermistor, 3 mW/℃ (power needed to raise the temperature by 1℃)
Measurement Range
-40° to 302℉ (-40° to 150℃)
Enclosure Rating
NEMA 3R, Plastic Box
Wiring Terminations
10″of 22 AWG wire
Probe
Seamless Stainless steel tube, 1/4″ (0.64 cm) O.D.
Dimensions
less probe 4.5″W x 2.3″H x 2.3″D (11.4 x 5.8 x 5.8 cm)
Weight
Duct
0.72 lb (0.32 Kg)
Immersion
1.0 lb (0.45 Kg)
Approvals
CE, RoHS
Warranty
5 years
product family features
- 5 year warranty
- Selection of thermistors and RTDs
- Immersion and duct applications
more information & related documents
Family Description
The ACI Plastic Box Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The A/*PB duct and immersion sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today.
Kele Description
TEMP SENSOR, DUCT, BALCO, DUCT, A/BALCO, 8", GALV. BOX
Manufacturer
ACI
