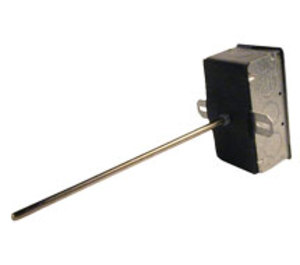

* product family image displayed

A/1K-A-50-GD | ACI | Temperature Sensors & Transmitters

1K PLATNIUM AVERAGE SENSOR, 50' COPPER FLEX

Manufacturer:ACI

MPN:A/1K-A-50-GD

SKU:A/1K-A-50-GD

List Price:

425.00

Today's Price:

238.00



(login for better pricing)
USD
Availability: Usually Ships in Less Than 8 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

add to cart

arrow

product family specifications

Accuracy

Thermistor

±0.36℉ (0.2℃)

RTD

±0.50℉ (0.28℃)

Sensor Type

Thermistor

10 kΩ Type II & III, 20 kΩ, 100 kΩ

RTD

100Ω, 1000Ω 385 curve

Temperature Range

-40° to 275℉ (-40° to 135℃)

Stability

Thermistor

0.24℉ (0.13℃) over five years

RTD

±0.1℃ drift

Heat Dissipation

Thermistor, 3 mW/℃ (power needed to raise the temperature by 1℃)

Measurement Range

-40° to 302℉ (-40° to 150℃)

Enclosure Rating

NEMA 1, Galvanized metal box

Wiring Terminations

10″ of 22 AWG wire or terminal strip

Weight

4″

0.6 lb (0.27 Kg)

8″

0.72 lb (0.72 Kg)

12″

0.9 lb (0.41 Kg)

18″

1.0 lb (0.45 Kg)

Approvals

CE

Warranty

5 years

product family features

  • Five-year warranty
  • Wide selection of thermistor or RTD curves
  • Stainless steel probes

more information & related documents

Family Description

The ACI Duct Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The duct sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Duct sensors come with a foam-backed handy box and 8″ probe. The A/*D Duct Sensor should be mounted close to the center of the duct and penetrate through any duct insulation at least 1″ (2.5 cm) into the airflow. The probes are sensitive within 1″ of the tip and insert through a 3/8″ (1 cm) hole. Use standard metal screws to secure to the duct.

Kele Description

1K PLATNIUM AVERAGE SENSOR, 50' COPPER FLEX

Manufacturer

ACI
