TAJH2 | Veris | Temperature Sensors & Transmitters

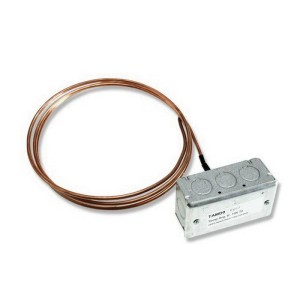

Immersion temperature sensor, 24' (7.3m) probe length, 10k Ω type 3 thermistor, with temperature documentation at 25°C and 35°C.
Brand:Veris
MPN:TAJH2
SKU:TAJH2
product specifications
Housing
Handy Box
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
24 ft
Sensor Element
100 Ohm Platinum RTD 385
Type
RTD
product series specifications
Accuracy:
Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)
10k Type 2 & 3: ±0.06°F (0.1°C)
RTD: 100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kO, 3kO, 10kO Type 2 & 3, 20kO, 100kO
RTD: 100O, Pt 385 Curve; 1000O, Pt 385 Curve
Temperature Range: Thermistor/RTD: -13 to 221°F (-25° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Mounting: Directly to duct
Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 - 1.52 m)
Probe length: (flexible) 6' (1.8 m), 12' (3.7 m), 24' (7.3 m)
(Rigid) 12" (30 cm), 18" (45 cm), 24" (61 cm). 30" (76 cm), 36" (91 cm)
Weight:
12": 1.8 lb (0.82 Kg)
18": 1.9 lb (0.87 Kg)
24": 2 lb (0.91 Kg)
30": 2.1 lb (0.95 Kg)
36": 2.2 lb (1.0 Kg)
6': 1.0 lb (0.45 Kg)
12': 1.24 lb (0.58 Kg)
24': 1.93 lb (0.88 Kg)
Warranty: 5 years
more information & related documents
Series Description
The Veris TA & TAR Series Flexible and Rigid Averaging Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing elements are constructed of highly stable precision thermistor materials or platinum RTDs. The TA Series is the flexible averaging sensors with sizes of 6 in (1.8m), 12 in (3.7 m) and 24 in (7.3 m). The TAR Series is the rigid averaging sensor with lengths of 12 in (30 cm), 18 in (45 cm), 24: (61 cm), 30 in (76 cm) and 36 in (91 cm).
Kele Description
AVG 24 FT 10K T3 THMS NIST 2 PT
Manufacturer
Veris
Related Documents
TA & TAR Series Datasheet
