TAHB0 | Veris | Temperature Sensors & Transmitters

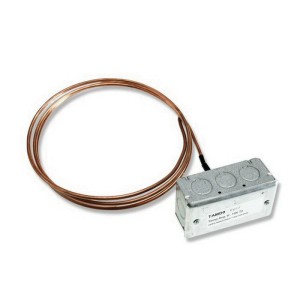

Immersion temperature sensor, 12' (3.6m) probe length, 100 Ω platinum RTD.
Brand:Veris
MPN:TAHB0
SKU:TAHB0
List Price:
$374.00
Today's Price:
$194.48
Log in for customized pricingproduct specifications
Type
RTD
Housing Material
Metallic
Probe Length
12 ft
Sensor Element
100 Ohm Platinum RTD 385
Housing
Handy Box
Enclosure Rating
NEMA 1
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: 2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)
10k Type 2 & 3: ±0.06°F (0.1°C)
RTD: 100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ
RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve
Temperature Range: Thermistor/RTD: -13 to 221°F (-25° to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Mounting: Directly to duct
Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 - 1.52 m)
Probe length: (flexible) 6' (1.8 m), 12' (3.7 m), 24' (7.3 m)
(Rigid) 12" (30 cm), 18" (45 cm), 24" (61 cm). 30" (76 cm), 36" (91 cm)
Weight:
12": 1.8 lb (0.82 Kg)
18": 1.9 lb (0.87 Kg)
24": 2 lb (0.91 Kg)
30": 2.1 lb (0.95 Kg)
36": 2.2 lb (1.0 Kg)
6': 1.0 lb (0.45 Kg)
12': 1.24 lb (0.58 Kg)
24': 1.93 lb (0.88 Kg)
Warranty: 5 years
more information & related documents
Series Description
The Veris TA & TAR Series Flexible and Rigid Averaging Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing elements are constructed of highly stable precision thermistor materials or platinum RTDs. The TA Series is the flexible averaging sensors with sizes of 6 in (1.8m), 12 in (3.7 m) and 24 in (7.3 m). The TAR Series is the rigid averaging sensor with lengths of 12 in (30 cm), 18 in (45 cm), 24: (61 cm), 30 in (76 cm) and 36 in (91 cm).
Kele Description
AVG 12 FT 100 OHM 385 RTD
Manufacturer
Veris
Related Documents
TA & TAR Series Datasheet
