THTAEE1P | Tasseron Sensors | Temperature Sensors & Transmitters

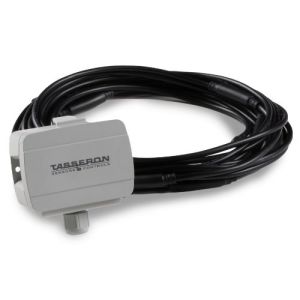

FLEXIBLE AVERAGE EURO PT1000 12' PVC CABLE

Brand:Tasseron Sensors

MPN:THTAEE1P

SKU:THTAEE1P

List Price:

$252.00

Today's Price:

$131.04

product datasheet

product specifications

Direction

Bi-Directional

Display

Output Signal

Analog

product series specifications

Connection: 2-pole AWG 22-16, 0.35 - 1.5mm2 spring-loaded, Quick Connect wire terminals

Probe Length: 8in (2.5m), 12 in (3.5m), 24in (7.5m) coiled

Sensor Jacket: PVC, VW-1, UL2464

Enclosure (Galvanized): NEMA 2, IP 40, 1.2mm galvanized steel, NEMA 3S, IP54 with weatherproof plug, Half inch knockout for wiring and fits optional watertight grommet

Cover (Galvanized): Dual slotted, gasketed galvanized steel Quick Attach cover

Mounting (Galvanized): Integrated galvanized steel flange with two # 8 mounting holes

Enclosure (Euro): NEMA 4X, IP66, injection-molded PCABS UL 94 V-0, M16 threaded port, cable gland & half inch NPT conduit adapter included

Cover (Euro): Tool-free quick snap with locking hinge, removable

Mounting (Euro): Integrated direct mounting holes

Sensor Element: Interchangeable NTC thermistor, 2-wire, RTD Pt1000, 2-wire

Number of elements: 24ft - 9 points, 12ft - 9 points, 8ft - 4 points

Sensor Value: NTC 10K Ohm type 2 @ 25C, 77F, NTC 10K Ohm type 3 @ 25C, 77F, NTC 20K Ohm @ 25C, 77F, RTD Pt1000 1000 Ohm @ 0C, 32F

Other elements on request

Accuracy: NTC thermistor 0 - 70C ± 0.2C, 32 - 158F ± 0.36F, Pt100, Pt1000 Class B IEC751, ± 0.3C, ± 0.5F @ 0C, 32F, Ni1000 DIN 43760, ± 0.5C, ± 0.9F @ 0C, 32F

Range: -40 - 105C, -40-221F

product series features

Options for NEMA 4X, IP65 Euro, or Galvanized steel box enclosures
Multipoint sensor PVC wire with in 8ft, 12ft, or 24ft lengths
24 in with 9 points of measurement
12 in with 9 points of measurement
8 in with 4 points of measurement
NTC thermistors, RTD elements and 4-20mA transmitters available
Quick Connect wire terminals for tool free termination
Compatible with most major control systems
5 Year Limited Warranty

more information & related documents

Series Description

High quality multipoint averaging temperature sensors with options for NEMA 4X, IP65 Euro, or Galvanized Steel Box enclosures. Available measuring elements interface with most major control manufacturers. Accurate interchangeable thermistors ensure low drift and are double encapsulated to guarantee the highest reliability. Transmitters available with 4-20mA, 2-wire loop connection in 5 standard pre-set temperature ranges.

Kele Description

FLEXIBLE AVERAGE EURO PT1000 12' PVC CABLE

Manufacturer

Tasseron Sensors
