S100177PFY12 | Minco Products | Temperature Sensors & Transmitters

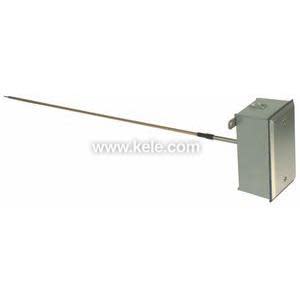

1000Ω 385 Rigid Averaging Duct Probe, 12" Insertion
Brand:Minco Products
MPN:S100177PFY12
SKU:ST-AV85R-12
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Averaging Type
Rigid
Type
RTD
Housing Material
Metallic
Probe Length
12 in
Sensor Element
1K Platinum RTD 385
Enclosure Rating
NEMA 4
Accessory
356-090K,T81U-XR,T85U-XR,T91U-XR,DCPA-1.2,691-K0A,DCP-1.5-W
Application
Duct Averaging Temperature,Small Ducts Without Access,Mixed Air Chambers,Hot/Cold Deck Discharge,Face/Bypass Discharge,Unit Vents
product series specifications
- Accuracy:
- ±0.27°F (±0.15°C)
- Sensor Type:
- Type 81:
- 100Ω Pt 385 Curve
- Type 85:
- 1000Ω Pt 385 Curve
- Type 91:
- 1000Ω Pt 375 Curve
- Temperature Range:
- -50° to 275°F (-45° to 135°C)
- Sensor Length :
- 12″ (30.5 cm), 18″ (45.7 cm), 24″ (61 cm), 36″ (91.4 cm)
- Sensitivity:
- Type 81:
- 0.21Œ©/°F @ 32°F (0°C)
- Type 85, 91:
- 2.1Œ©/°F @ 32°F (0°C)
- Materials Of Construction:
- Element Casing:
- 0.188″ (4.8 mm) Brass
- Enclosure Rating:
- NEMA 4, Metal, weather-resistant
- Dimensions:
- Element diameter 0.188" (4.8 mm)
- Wiring Terminations:
- 22 AWG Teflon insulated, white/red
- Weight:
- 12″:
- 1.2 lb (0.54 Kg)
- 18″:
- 1.4 lb (0.63 Kg)
- 24″ :
- 1.8 lb (0.82 Kg)
- 36″ :
- 2.1 lb (0.95 Kg)
- Warranty:
- 3 years
product series features
- Continuous averaging
- Rigid sensor
- 12 in, 18 in, 24 in, 36 in (30.5, 45.7, 61, and 91.4 cm) lengths
- 100 ohm and 1000 ohm 385 curve
- Weather-resistant box
more information & related documents
Series Description
The Minco Continuous-resistance element ST-AV*R Platinum Curve Rigid Averaging Sensors provide accurate sensing of duct temperatures when a small, inaccessible area must be covered. They average temperatures over their entire length and terminate in a weather-resistant housing. They are available in 12, 18, 24, and 36 in (30.5, 45.7, 61, and 91.4 cm) lengths. The sensor uses an element that closely matches platinum resistance/temperature characteristics over the specified range. It is available in 100 Ohm and 1000 Ohm 385 curve and 1000 Ohm 375 curve. The sensors have a brass case that is rigid for easy single-point mounting.
Kele Description
TEMPSENSOR,AVG,RIGID,1KRTD385,12.00"PROBE,METALLICENCL
Manufacturer
Minco Products
