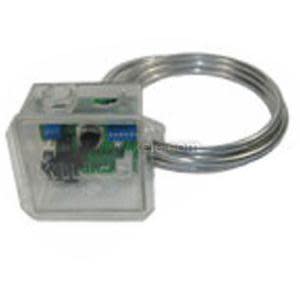

AS570PF8A | | Temperature Sensors & Transmitters
Aluminum Probe; 8.0 feet; 1000 Ω RTD (0.00385 Platinum)
Brand:
MPN:AS570PF8A
SKU:AS570PF8A
List Price:
$-.--
Today's Price:
$-.--
Log in for customized pricingproduct specifications
Type
Thermistor
Contact Type
SPDT
Housing Material
Poly
Probe Length
8 ft
Sensor Element
1K Platinum RTD 385
Contact Rating
1A @ 24 VDC
Accessory
CC-1G-K,DCPA-1.2,691-K0A,DCP-1.5-W
Feature
Galvanized
Application
Duct Averaging Temperature
product series specifications
- Supply Voltage:
- 24 VAC ±10 @ 15 VA; 24 VDC ±10 @ 120 mA
- Accuracy:
- ±0.9‚Ñâ (±0.8‚ÑÉ) from 18° to 151‚Ñâ (-7.8° to 55‚ÑÉ)
- Signal Out:
- 1000Ω RTD 385 curve
- Relay output:
- Power:
- 6A @ 120 VAC
- Signal:
- 1A @ 24 VDC
- Relay Type:
- SPDT
- Operating Temperature:
- -22‚ÑÉ to 158‚Ñâ (-30° to 70‚ÑÉ)
- Wiring Terminations:
- Signal:
- 14-24 AWG
- Relay:
- 12-24 AWG
- Weight:
- 8 ft (2.4m):
- 1.2 lb (0.54 Kg)
- 17 ft (5.2m):
- 1.6 lb (0.72 Kg)
- 25 ft (7.6m):
- 1.8 lb (0.82 Kg)
- 50 ft (15.2m) 3.2 lb (1.5 Kg):
- Approvals:
- UL File E211718
- Warranty:
- 3 years
product series features
- Averaging sensor and low cut out sensor
- Solid state technology
- Mounts in any direction
- Ultra flexible
- Power loss detection
- Field adjustable
- Latching and non-latching relays
more information & related documents
Series Description
The Minco Chill-Out Combination Sensor is two sensors in one. One sensor is for the duct average temperature and the other is used for freeze protection. The AS570 Series sensor provides a digital alarm contact and a 1000 Ohm 385 platinum resistance curve for accurate monitoring of your duct conditions. The solid state design and the 3/8 in tubing eliminate concerns of gas leaks or kinking the capillary during installation. The AS570 Series Sensor features a ultra flexible plenum-rated PVC coated galvanized steel armor sensor case for low cut out and separate averaging sensor with flexible tubing. Switch points are factory set at 38 degrees F (3.3 degrees C) but are easliy field adjustable. Upon a power loss the AS570 Series Sensor reverts to its normal state.
Kele Description
TEMPSENSOR,AVG,FLEXIBLE,1KRTD385,8.00'PROBE,POLYENCL
Manufacturer
Related Documents
AS570 Installation Manual
