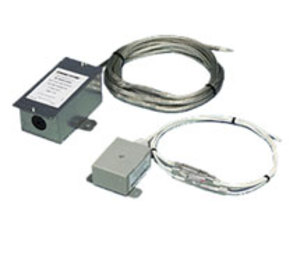

TE-707-B-1-A-1 | MAMAC Systems | Temperature Sensors & Transmitters

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD:

Platinum: ±0.1%

Nickel/Balco: ±0.5°F (0.3°C)

Sensor Type:

Thermistor: 2252Ω, 3000Ω, 10,000Ω Type II & III, 20,000Ω, 100,000Ω

100Ω Platinum 385 curve, 1,000Ω Platinum 385 curve

RTD: 100 Platinum 385 curve, 1,000 Platinum 385 curve, 1,000 Nickel, 1,000 Balco

Element Casing: Plenum rated cable or Metallic Armored cable

Sensor Length/Weight:

Plenum: 6 ft (1.8 m); 1.0 lb (0.45 Kg)

12 ft (3.6 m); 1.05 lb (0.48 Kg)

24 ft (7.2 m); 1.15 lb (0.51 Kg)

Armored: 6 ft (1.8 m); 1.23 lb (0.56 Kg)

12 ft (3.6 m); 1.45 lb (0.66 Kg)

24 ft (7.2 m); 1.91 lb (0.86 Kg)

Operating Temperature: -40° to 200°F (-40° to 93°C)

Enclosure Rating: NEMA 4X, Metal

Wiring Terminations: 5" (15.2 cm) of 22 AWG pigtails

Approvals: CE, RoHs

Warranty: 5 years
