ST-FZ42-12 | Kele | Temperature Sensors & Transmitters
20,000Ω Averaging Thermistor @ 77°F (25°C), Type Iv (Green Leads), 12.5' (3.81M) Probe Length, Four Elements Total
Brand:Kele
MPN:ST-FZ42-12
SKU:ST-FZ42-12
List Price:
$214.00
Today's Price:
$111.28
product specifications
Accessory
CC-1G-K, M-633, M-648-K, DCPA-1.2, 691-K0A, DCP-1.5-W, UR, T81U-XR, T85U-XR, T91U-XR
Application
Duct Averaging Temperature
Averaging Type
Flexible
Housing
Handy Box
Housing Material
Metallic
Housing Rating
NEMA 1
Output
Resistance
Probe Length
12.50 ft
Sensor Element
20K Thermistor
Type
Thermistor
product series specifications
- Accuracy:
- ±0.36‚Ñâ (0.2‚ÑÉ)
- Sensor Type:
- 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III & III w/11K shunt, 20 kΩ, 100 kΩ
- Temperature Range:
- Thermistor/RTD:
- -40° to 221‚Ñâ (-40° to 105‚ÑÉ)
- Temperature Stability:
- 0.24‚Ñâ (0.13‚ÑÉ) over five years
- Heat Dissipation:
- 2.7 mW/°C (power needed to raise the temperature by 1°C)
- Temperature Coefficient:
- Negative temperature coefficient
- Enclosure Rating:
- NEMA 1, metal
- Mounting:
- Directly to duct with back box, clips available for serpentine mounting
- Wiring Terminations:
- 8' (2.4m) of 24 AWG prestripped pigtails
- Weight:
- 8':
- 1.25 lb (0.6 kg)
- 12':
- 1.5 lb (0.7 kg)
- 25':
- 2.3 lb (1.04 kg)
- Approvals:
- CE
- Warranty:
- Lifetime
product series features
- Lifetime warranty
- Wide selection of thermistor curves
- Adaptable to most duct sizes
- 3/16 in (0.48 cm) soft copper sensor
- Copper facilitates quick average temperature response
more information & related documents
Series Description

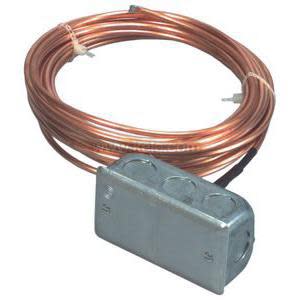

The Precon ST-FZ Series Averaging Thermistor Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The active sensing elements are highly stable precision thermistor material accurate to within ±0.36 degrees F (0.2 degrees C). The sensing elements are sealed in a 3/16 in (0.48 cm) soft-drawn copper coiled tube, attached to a standard handibox with mounting bracket attached.
Kele Description
TEMP SENSOR, AVG, FLEXIBLE, 20K, 12.50', METALLIC ENCL
Manufacturer
Kele
