TSDCA07K | Greystone Energy Systems | Temperature Sensors & Transmitters

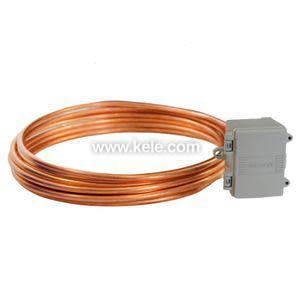

Flexible Copper Duct Average Temperature Sensor, ABS Enclosure with Hinged and Gasketed Cover, 10,000 Ω Type 3, NTC Thermistor, ±0.2°C, 6100mm (20') Probe
Brand:Greystone Energy Systems
MPN:TSDCA07K
SKU:TSDCA07K
List Price:
$288.00
Today's Price:
$149.76
Log in for customized pricingproduct specifications
Averaging Type
Flexible
Type
Thermistor
Housing Material
Poly
Probe Length
20 ft
Sensor Element
10K Type 3 Thermistor
Housing
Polycarbonate
Enclosure Rating
NEMA 4X,IP65
Application
Duct Averaging Temperature,Air Handling Unit
Output Signal
Resistance
product series specifications
Sensor Type: Thermistor or RTD (see ordering chart)
Sensor Accuracy:
Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F)
Platinum RTDs: ±0.3°C (±0.54°F) @ 0°C (32°F)
Nickel RTDs: ±0.4°C (±0.72°F) @ 0°C (32°F)
Probe Sensing Range: -40 to 60°C (-40 to 140°F)
Ambient Operating Range: -40 to 50°C (-40 to 122°F), 5 to 95 %RH non-condensing
Wire Material: FT-6 rated plenum cable, 22 AWG
Probe Material: Soft copper
Probe Diameter: 7.94 mm (0.315")
Standard Lengths: 1800, 3600, 6100, 7300mm (6', 12', 20', 24')
Enclosure: ABS, UL94-V0, IP65 (NEMA 4X)
C: includes a terminal block
E:same as C, with thread adapter (1/2" NPT to M16), and cable gland fitting
Termination:
A:pigtail, 2 or 3 wire
C & E: terminal block, 2 or 3 wire
Country of Origin: Canada
Warranty: 5 years
product series features
- TSDC Series
- Flexible, multi-point, averaging temperature sensor
- Soft copper probe
- Available in various lengths
- TSDF Series
- Flexible, multi-point, duct-averaging temperature sensor
- Probe is FT-6-rated plenum cable
- TSDR Series
- Rigid, multi-point, duct-averaging temperature sensor
- It is encapsulated in a 6-mm (0236 in) OD
- 304 series stainless-steel probe
more information & related documents
Series Description
The Greystone TSDC Series is a flexible, multi-point, duct-averaging temperature sensor that utilizes several precision sensors spaced at equal distances. It is encapsulated in a 7.94-mm (0.315 in) OD, soft copper probe and is available in various lengths. All probes provide excellent heat transfer, fast response, and resistance to moisture penetration. The Greystone TSDF Series is a flexible, multi-point, duct-averaging temperature sensor that utilizes several precision sensors spaced at equal distances. The probe is FT-6-rated plenum cable and is available in various lengths. All probes are constructed to provide excellent heat transfer and fast response. The Greystone TSDR Series is a rigid, multi-point, duct-averaging temperature sensor that utilizes several precision sensors spaced at equal distances. It is encapsulated in a 6-mm (0236 in) OD, 304 series stainless-steel probe, and is available in various lengths. All probes provide excellent heat transfer, fast response, and resistance to moisture penetration.
Kele Description
TEMP SENSOR, AVG, COPPER, 10K TYPE III, 20.00', POLY ENCL
Manufacturer
Greystone Energy Systems
TSDFXXX Install
