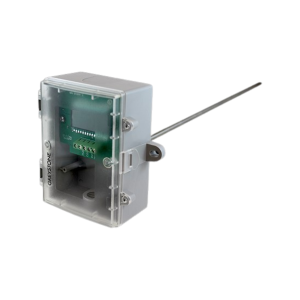

TDDRBC12FD001 | Greystone Energy Systems | Temperature Sensors & Transmitters

Sensor Type: 1000 Ω platinum RTD

Sensor Accuracy: ±0.3°C (±0.54°F) @ 0°C (32°F)

Probe Sensing Range: -40 to 60°C (-40 to 140°F)

Probe Diameter: 6mm (0.236”)

Probe Material: 304 series stainless steel

Standard Lengths: 450, 600, 900 mm (18”, 24”, 36”)

Output Signal: 4-20 mA current loop, 0-5 Vdc, or 0-10 Vdc (factory configured)

Transmitter Accuracy: ±0.2% of span, including linearity

Power Supply: 15-30 Vdc or 12-28 Vac

Maximum Loop Current: 20 mA

Minimum Loop Current: 4 mA

Maximum Loop Load: 700Ω

Maximum Current (Voltage): 11 mA

Maximum Output (Voltage): 10 Vdc

Consumption (MAX): Current: 20 mA, Voltage: 11 mA

Input Voltage Effect: Negligible over specified operating range

Protection Circuitry: Reverse voltage protected and output limited

Output Drive @ 24 VDC: Current: 700Ω max, Voltage: 20,000Ω min

LCD Display Units: °C or °F (factory configured)

Display Range: 3 digit

Negative to Positive Range (-88 to 88)

Positive Range <100 (88.8), >100 (888)

Display Size: 38.1mm W x 16.5mm H (1.5” x 0.65”)

Digit Height: 11.4mm (0.45”) plus °C/°F symbol

Ambient Operating Range: 0 to 50°C (32 to 122°F), 5 to 95 %RH

Enclosure: B: Grey polycarbonate UL94-V0, IP65 (NEMA 4X),

F: Same as B with thread adapter (1/2” NPT to M16) and cable gland fitting

Wiring Connections: Screw terminal block (14 to 22 AWG)

Country of Origin: Canada
